Geminal proton-proton coupling (2JHH) Two proton having geminal coupling are not chemically equivalent. This coupling ranges from -20 to 40 Hz.
What are geminal protons?
The geminal protons are labeled HA and HB rather than HA and HX because they have similar chemical shifts (A and B are close in the alphabet). Coupling between the geminal protons is independent of optical activity and rotation about single bonds.
Can coupling constants be negative?
Coupling constants can be either positive or negative, defined as follows: coupling constants are positive if the energy of A is lower when X has the opposite spin as A (αβ or βα), and negative if the energy of A is lower when X has the same spin as A (αα or ββ).
What is the coupling constant between the protons at position E and D?
Peaks D and E both have J-values of 8.5 Hz, so these two protons are coupling to each other.
What is geminal and vicinal proton?

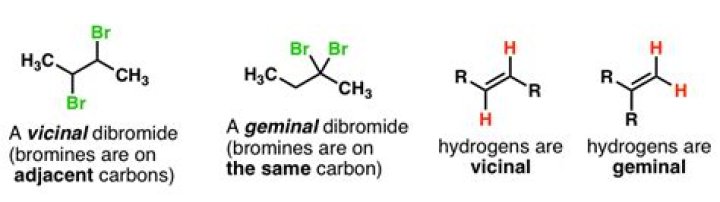

In chemistry, the descriptor geminal refers to the relationship between two atoms or functional groups that are attached to the same atom. The related term vicinal refers to the relationship between two functional groups that are attached to adjacent atoms.
What is vicinal and geminal dibromo?
In a vicinal diol, the two OH groups are on adjacent carbons. In. a geminal diol, the two OH groups are bonded to the same carbon. Addition of Br2 to an alkene. produces a vicinal dibromide.
What is geminal and vicinal coupling?
The key difference between geminal and vicinal coupling is that geminal coupling refers to the coupling of two hydrogen atoms that are bound to the same carbon atom, whereas vicinal coupling refers to the coupling of two hydrogen atoms that are bound to two adjacent carbon atoms.
Does chlorine couple in NMR?
So the elements (F, Si and P) you have listed all hav nuclei with spin 1/2, so they behave exactly the same as hydrogen. Cl has two NMR active nuclei but they are both spin 3/2 – so they are quadrupolar.
What is DDD in NMR?
Description: A doublet of doublets of doublets (ddd) is a pattern of up to eight lines that results from coupling to three protons (or other spin 1/2 nuclei). If the two smaller coupling constants are the same, a doublet of triplets (dt) occurs.
What is first order spectra NMR?
In other word, the proton is only coupled to other protons that are far away in chemical shift. The spectrum is called first-order spectrum. The splitting pattern depends on the magnetic field. The second-order splitting at the lower field can be resolved into first-order splitting pattern at the high field.
What is geminal and vicinal dihalide?
The geminal dihalides are organic compounds containing two halide groups attached to the same carbon whereas vicinal dihalides are organic compounds having two halide groups attached to two adjacent carbon atoms of the same chemical compound.
Why is NBS used instead of Br2?
NBS As A Reagent For Allylic Bromination NBS is used as a substitute for Br2 in these cases since Br2 tends to react with double bonds to form dibromides. The advantage of NBS is that it provides a low-level concentration of Br2, and bromination of the double bond doesn’t compete as much.
What is the difference between geminal and vicinal?
Geminal (adjective) Describing identical atoms or groups attached to the same atom in a molecule. Vicinal (adjective) Of or pertaining to a neighborhood; neighboring. Vicinal (adjective) Describing identical atoms or groups attached to nearby (especially adjacent) atoms in a molecule.
What is the value of geminal coupling constant?
The geminal coupling also has a value which we can name as the geminal coupling constant. The value of this constant may vary from -23 to +42 Hz, depending on the other substituents that are attached to the same carbon atom. What is Vicinal Coupling?
What is the meaning of geminal in chemistry?
In chemistry, the descriptor geminal refers to the relationship between two atoms or functional groups that are attached to the same atom. The word comes from Latin gemini meaning . Near; vicine. Having the substituted groups on the same carbon atom.
What is the vicinal coupling constant in NMR?
We can measure the vicinal coupling in NMR as the vicinal coupling constant, which has a value that ranges from 0 to +20 HZ, depending on the other substituents attached to the carbon atoms. What is the Difference Between Geminal and Vicinal Coupling?
