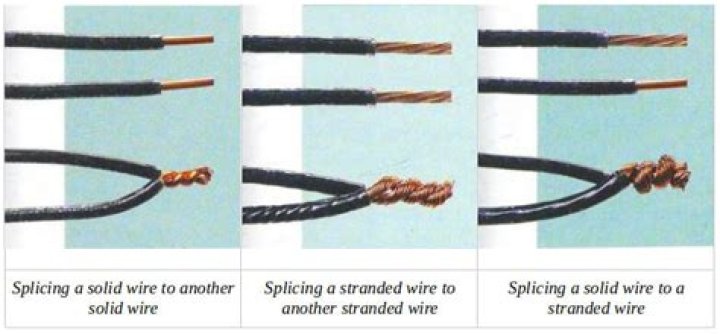

Be on the Lookout for Improperly Spliced Wires If the connecting wires become overloaded or loose, they can overheat and cause sparks. If you allow these wires to stay in the open, then those sparks could cause a fire.
Can UF wire be spliced?
NSI UF cable splice kit will accommodate 14/3 through 8/3 with ground UF cable and create a direct burial splice. Contains one four-position connector. For simplified splicing of UF cable designed with heavy wall heat shrink with sealant. 600-volt maximum, supplied in attractive, clear point-of-purchase packaging.
How much does it cost to rewire a boat trailer?
Having a utility trailer rewired can cost anywhere from $50 to $200, depending on labor costs and the design of the trailer. How do I fix my trailer lights not working?
What kind of wiring do I need for a boat trailer?
Many standard light-duty trailers, such as many boat trailers and utility trailers, use a 4-way wiring harness to connect to the tow vehicle. This connection provides the required running lights, turn signals, and brake lights for the trailer. There is also an additional pin provided for a ground wire.
What wire do you use for running lights on a trailer?
Traditionally, the running light circuit (typically the brown wire) is carried on a single wire, so a jumper wire and some additional butt connectors are required to feed the running lights on the opposite side of the trailer. As a simpler alternative, you can use a wishbone harness (also known as a Y harness) such as this one.
How do you use a 4 way harness on a trailer?
If you don’t need to replace your lights, you can simply use a 4-way harness . Attach the white ground wire directly to a clean, bare section of the trailer frame using a self-tapping screw and ring terminal. For best performance, each component should have its own ground.
How do you wire a trailer brake light harness?
Each light will have 3 wires: one that connects to the main harness’s brown running light wire, one that connects to the turn/brake light wire (typically yellow or green), and a white ground that should be secured to the trailer frame. Use a crimper to strip back the insulation on the wires.
