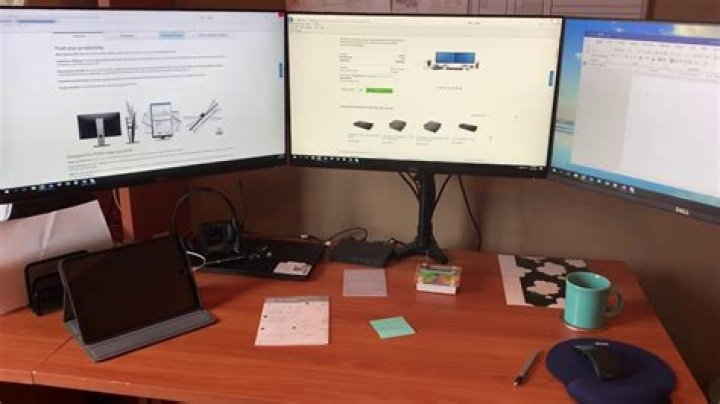

When you use DisplayPort technology with your Dell latitude laptop, you can run up to 3 monitors using your Intel HD graphics card. For example, you can display graphics on your laptop screen and 2 external monitors. Or you can display on 3 external monitors (one will replace your laptop display) (Figure 1).

How do I connect 3 monitors to my laptop docking station Windows 10?

How Can I Connect Three Monitors to My Laptop In Windows 10?

  1. Find the name of your graphics card and check its documentation to ensure it supports three monitors.
  2. Connect the dock to your laptop.
  3. Turn off your laptop and connect your monitors to their appropriate ports, plug them in, and set their orientation.

How do I know if my laptop can support 3 monitors?

The best way to find out whether your graphics card supports multiple monitors is to find the name of your card (Control Panel > Device Manager > Display Adapters) and Google it with the monitor setup you’re looking to run (e.g. “Nvidia GTX 1660 four monitors”).

How do I setup 3 monitors on Windows 10?

2. How to set up three monitors in Windows 10

  1. To choose how you want to use your display on Windows 10, press Windows + P keys on your keyboard. Choose a new display mode from the available options:
  2. You should choose the Extend option when you use three monitors.
  3. Then, configure your displays on Windows 10.

Can laptop handle 3 monitors?

Supporting three screens can be just as easy, or much trickier. It depends on the laptop, the graphics card (or integrated graphics), the graphics drivers, and perhaps the amount of memory available. Some laptops will support two external monitors if you can find a way of plugging them in.

How do I setup 3 monitors in Windows?

How to select multiple displays viewing mode on Windows 10

  1. Open Settings.
  2. Click on System.
  3. Click on Display.
  4. Under the “Select and rearrange displays” section, select the monitor that you want to adjust.
  5. Under the “Multiple displays” section, use the drop-down menu to set the appropriate viewing mode:

How do I connect 3 monitors to a DisplayPort?

How to DisplayPort daisy-chain

  1. Verify that your GPU can support DisplayPort v1.2 MST (if not, download a driver)
  2. Plug each of your monitors into a power source and make sure all power cables are securely connected.
  3. Use a DisplayPort cable to connect your computer to DisplayPort In on Monitor 1.

Can Windows 10 run 3 monitors?

Windows 10 has several features and settings to support one, two, three, four, and even more monitors without the need for third-party software for the best experience.

Can my laptop support 3 monitors?

What is the display port on the Dell Latitude 7410?

11-22-2020 11:57 AM @DMobley232 The Latitude 7410 is a DisplayPort 1.2/HBR2 system. When the WD19TB is paired with that type of system, half of the display bandwidth received from the system is allocated to the “downstream TB3” port at the edge of the dock — not to be confused with the USB-C port near the HDMI output.

Does the D3100 work with the WD19 dock?

The D3100 works for you because it uses “indirect display” technology called DisplayLink (not to be confused with DisplayPort) rather than tapping into native GPU outputs like the WD19 dock family and most other docks.

Can I run a 4K 60Hz monitor through a Thunderbolt 3 Dock?

@DMobley232 You can’t run 3x 4K 60 Hz displays through a Thunderbolt dock from any system. That would require more bandwidth than Thunderbolt 3 itself, and that’s before considering bandwidth you’d need for anything else on the dock, like USB peripherals, Ethernet, etc.
