Ideally, part designers should know that when it comes to aluminum grades, 3003 and 5052 will bend, 6061 will not. The aluminum series’ ability to bend tends to decrease as you move down the list of tempers, from annealed to T4 and T6.
CAN 6061 Aluminum be formed?
In its annealed state, 6061 can be formed since the elongation is up to 18 percent and the difference between yield and tensile strengths is 10 KSI. However, as you move down the list of tempers, from annealed to T4 or T6, formability changes. This aluminum series’ ability to bend tends to decrease with temper.
Can you cold bend aluminum?
Do not heat up the metal because it will remove the heat treat if you heat it too much, cold bending is just fine.
Can you heat aluminum to bend it?
When aluminum gets hot, first it is malleable, then it gets brittle, and then it melts. When you heat aluminum too close to the melting point and then try to bend it, the workpiece can crack or break.
What is the softest aluminum?
1100 aluminum
1100 aluminum, known as commercially pure aluminum, is the softest aluminum available.
What is the most bendable aluminum?
Aluminium alloy 3003 excellent for bending The best series for forming – and thus for bending – are the alloy series 3xxx, 5xxx and in some cases 6xxx. Aluminium alloy 6063 is a good choice, for example, while 6082 is more difficult.
At what temp Can you bend aluminum?
If you bend anything harder than 5054 aluminum, you will need to anneal it by heating along the bend line. If you don’t, such hard aluminum will crack and break during forming. Aluminum melts between 865 and 1,240 degrees F, so you obviously can’t heat it as much as steel.

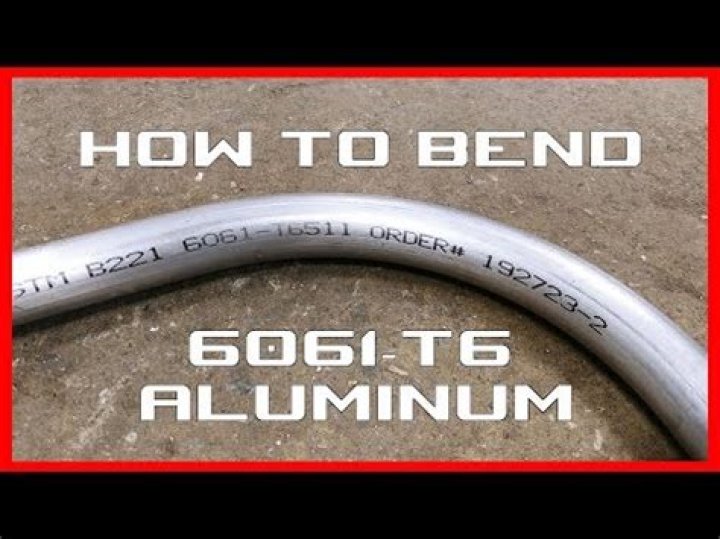

What is aluminium 6061 round tube?
Aluminum 6061 round tube is a round hollow extruded aluminum that is widely used for all types of fabrication projects where strength along with lightweight and corrosion resistance is a primary concern. The interior is seamless and smooth. This type of round aluminum tube is mainly utilized for engineering and structural applications.
How do you air Bend 6061 T6 aluminum?
Say you’re bending 0.25-in.-thick 6061-T6 aluminum to a 100-degree external angle (80-degree internal angle). To make this easier, you’d start with your 6061 material in the soft, T-0, state. You’d probably air-bend by using a 3.0-in. die opening with a relieved profile.
What is the difference between aluminum 6061 and aluminum 3003?
In the annealed condition it has better formability than the 3003 or even 1100 alloys (99 percent aluminum, very soft). 6061 is the most versatile series within the heat-treatable family of alloys. In its annealed state, 6061 can be formed since the elongation is up to 18 percent and the difference between yield and tensile strengths is 10 KSI.
Can 6061 aluminum be formed into press brakes?
Forming 6061 aluminum isn’t impossible, but part designers should know that, for the press brake operator, it’s not the ideal material. Good press operators will get the job done, but they would much prefer another aluminum grade.
