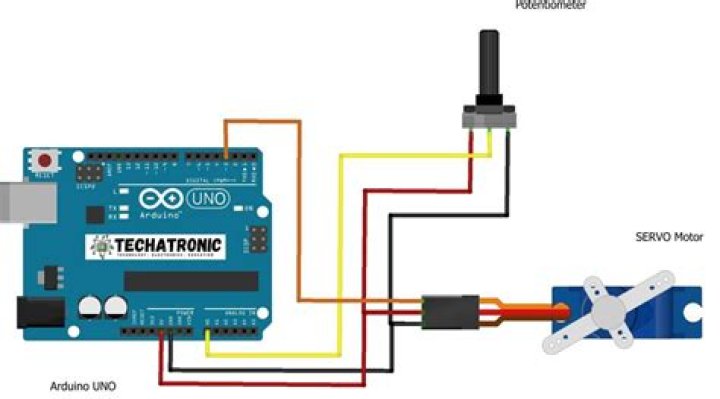

Control the position of the Servo motor with the Arduino and the potentiometer. Servo motors have three wires: power, ground, and signal. The potentiometer should be wired so that its two outer pins are connected to power (+5V) and ground, and its middle pin is connected to analog input 0 on the board.
What does the potentiometer do in a servo?
Inside there is a pretty simple set-up: a small DC motor, potentiometer, and a control circuit. The motor is attached by gears to the control wheel. As the motor rotates, the potentiometer’s resistance changes, so the control circuit can precisely regulate how much movement there is and in which direction.
Can you control the speed of a servo?
The first thing to remember is that servos are not inherently speed controlled. You’re sending the servo a position signal, and the servo is trying to get to that position as fast as possible. However you can reduce the speed of the servo by sending it a series of positions that lead to the end position.
What is the role of potentiometer?
A potentiometer is a type of position sensor. They are used to measure displacement in any direction. Linear potentiometers linearly measure displacement and rotary potentiometers measure rotational displacement.
How fast can a servo motor move?
The datasheet shows that at 4.8V the servo can move 60° at a speed of . 21 seconds without any limiting force factors (load). Also operating at 4.8V, this servo motor can drive a load up to 3.3kg/cm (Stall Torque). At 6V, the high end of the test voltage, the servo can move 60° at a speed of .
Can a potentiometer be used as a fixed resistor?
In its simplest form, the electrical operation of a potentiometer can be considered the same as for two resistors in series with the sliding contact varying the values of these two resistors allowing it to be used as a voltage divider.
What are disadvantages of potentiometer?
Disadvantages of potentiometer
- It is slow in operation.
- It has low accuracy.
- It has limited bandwidth.
- If you use a linear potentiometer, you should apply a large force to move the sliding contact.
- There is a possibility of friction and wear due to the sliding of the wiper across the resistive element.
How to control a servo with a joystick?
To control servo motors, when we move the joystick horizontally, the first servo motor will move right and left depend on lever position. Similary, when we move the joystick vertically, another servo motor will move right and left depend on lever position.
How does servo work?
Servo motors are used to control position and speed very precisely, but in a simple case, only position may be controlled. Mechanical position of the shaft can be sensed by using a potentiometer, which is coupled with the motor shaft through gears.
How do servo motors work?
How does a servo motor work? A servo motor is an electromechanical device that produces torque and velocity based on the supplied current and voltage. A servo motor works as part of a closed loop system providing torque and velocity as commanded from a servo controller utilizing a feedback device to close the loop.
