Class E airspace supports both Instrument Flight Rules (IFR) and Visual Flight Rules (VFR) operations within.
What are the VFR requirements for Class E airspace?
14 CFR § 91.155 – Basic VFR weather minimums.
| Airspace | Flight visibility | Distance from clouds |
|---|---|---|
| Class E: | ||
| Less than 10,000 feet MSL | 3 statute miles | 500 feet below. |
| 1,000 feet above. | ||
| 2,000 feet horizontal. |
How high can you fly in Class E airspace?
Class E airspace typically extends up to, but not including, 18,000 feet MSL (the lower limit of Class A airspace). All airspace above FL 600 is Class E airspace.
Can you fly in Class E airspace without ads B?
Under the rule, ADS-B Out performance is required to operate in: Class A, B, and C airspace. Class E airspace within the 48 contiguous states and the District of Columbia at and above 10,000 feet MSL, excluding the airspace at and below 2,500 feet above the surface.
Is there any Class G airspace above 1200?
Class G airspace will always start at the ground and go up to 14,500′ msl as a maximum. Thus the most common thing you will find in the space between all airports is Class G airspace going up to 1,200′ agl, and then Class E airspace starting above that.
What is class E on a flight?
You’ll commonly find an E after your fare class to indicate that the ticket is an excursion fare, which has a minimum or maximum stay at the destination.
What are VFR takeoff minimums?
To take off or land at any airport in Class B, C, D and E airspace under special VFR, the ground visibility at the airport must be at least 1 statute mile. If ground visibility is not reported, then the flight visibility during takeoff or landing must be at least 1 statute mile.
Can a student pilot request special VFR?
Student, Sport and Recreational Pilots may not request Special VFR clearances. Note that typically only one aircraft may operate under a Special VFR clearance at a time in the class B airspace, and ATC reserves the right to deny Special VFR depending upon workload or other operational considerations.
Do I need a transponder in Class E airspace?
In general, no, a transponder is not required equipment. The regulations regarding transponder and altitude-reporting requirements are found in 14 CFR 91.215. There is an exception to the regulations as they apply to the 30 nm Mode C “veil” around the Class B airports.
Can you fly IFR without a transponder?
You do not need a transponder to fly IFR, as long as you stay outside of airspace that requires it.
Does Class E start at 1200 or 14500?
Class E Enroute Airspace You may have heard that Class E airspace starts at 14,500 feet, but if you look at the sectional, this isn’t really the case. In the vast majority of areas, there are enough airports and victor airways to have Class E begin at 1,200 feet AGL. This is known as enroute Class E airspace.
What is the difference between Class E and G airspace?
Class E is used for airspace between usually 2,500 ft (760 m) AGL (around airports 1,000 ft (300 m) or 1,700 ft (520 m) AGL) and FL 100. Class F is not used. Class G is used below 2,500 ft (760 m) AGL (around airports below 1,000 ft (300 m) AGL, then rises via a step at 1,700 ft (520 m) to 2,500 ft (760 m) AGL).

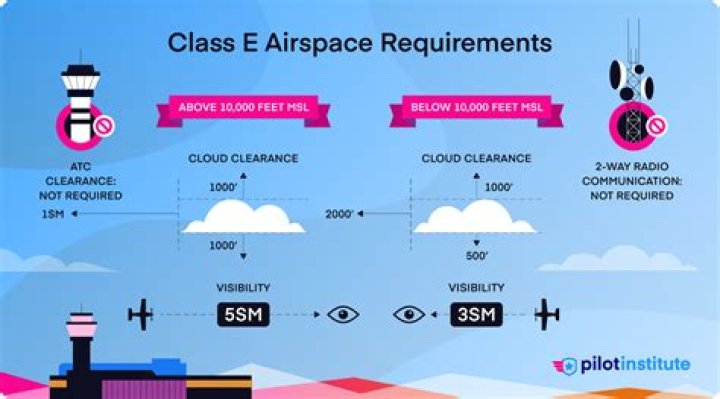

What do I need to fly VFR through Class E airspace?
Here’s what you need to fly VFR through Class E below 10,000 feet MSL: If you fly 10,000 feet MSL and above in Class E airspace, the weather minimums are raised: So, why do the requirements change at 10,000′ MSL? Think about aircraft speed restrictions. FAR 91.117 states that below 10,000 feet MSL, you cannot exceed 250 knots without a clearance.
How high does Class E airspace start?
Class E Enroute Airspace You may have heard that Class E airspace starts at 14,500 feet, but if you look at the sectional, this isn’t really the case. In the vast majority of areas, there are enough airports and victor airways to have Class E begin at 1,200 feet AGL. This is known as enroute Class E airspace.
What is the difference between IFR and VFR separation?
Standard IFR separation is provided to all aircraft operating under IFR in controlled airspace. VFR Requirements. It is the responsibility of the pilot to ensure that ATC clearance or radio communication requirements are met prior to entry into Class B, Class C, or Class D airspace.
What is the cloud clearance requirement for VFR operations?
The cloud clearance requirement for VFR operations is “clear of clouds.” Operating Rules and Pilot/Equipment Requirements. Regardless of weather conditions, an ATC clearance is required prior to operating within Class B airspace.
