An LED (Light Emitting Diode) emits light when an electric current passes through it. The simplest circuit to power an LED is a voltage source with a resistor and an LED in series. If the voltage source is equal to the voltage drop of the LED, no resistor is required.
What resistors do I need for LEDs?
Basics: Picking Resistors for LEDs
| Power Supply Voltage | LED Color | Resistor (rounded) |
|---|---|---|
| 4.5 V | Red, Yellow, or Yellow-Green | 39 Ω |
| 4.5 V | Blue, Green, White, or UV | 51 Ω |
| 5 V | Blue, Green, White, or UV | 68 Ω |
| 5 V | Red, Yellow, or Yellow-Green | 150 Ω |

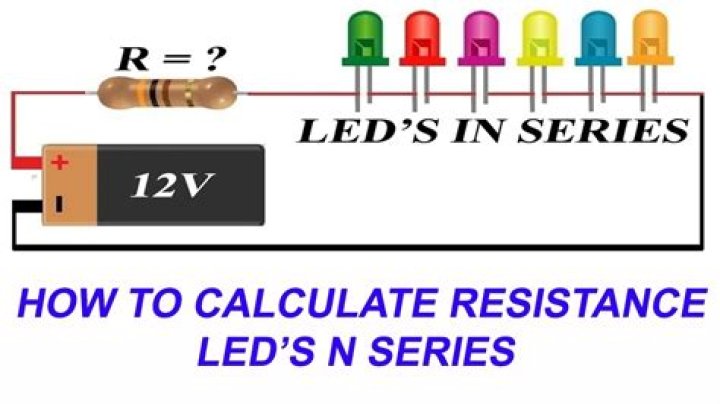

How do you calculate the resistor in a LED series?
The value of the correct Resistor for LEDs in Series is the Supply Voltage (pressure) minus the total pressure consumed by all off the LEDs (Voltage Drop Across a Single LED times by the total Number of LEDs), that answer is then divided by the LED Current (electron flow) required by the circuit.
Can you run LEDs without a resistor?
Never Ever Connect an LED Without a Resistor, Mostly. When hooking up an LED, you are always supposed to use a current-limiting resistor to protect the LED from the full voltage.
How big of a resistor do I need?
A rule of thumb is to find a resistor with twice the power rating. Here I would choose a 250 mW resistor since those are the most standard ones. Usually, you can just use the cheapest resistor you can find with the correct power rating.
Does it matter which side of the LED you put the resistor?
The resistor can be on either side of the LED, but it must be present. When two or more components are in series, the current will be the same through all of them, and so it doesn’t matter which order they are in.
How do I calculate what resistor I need?
We’ll use the following formula to determine the resistor value: Resistor = (Battery Voltage – LED voltage) / desired LED current. For a typical white LED that requires 10mA, powered by 12V the values are: (12-3.4)/. 010=860 ohms. To use several LEDs in parallel, sum the current values.
How do I know what resistor I need?
Do you put the resistor before or after the LED?
It doesn’t matter! The resistor can go before – or after – the LED, and it will still protect it. the current that flows out of a battery is always equal to the current that flows back into the battery.
Can I make a circuit without a resistor?
So, the answer is yes, there can be a current in a circuit without a resistor. The concept of a resistor is not getting clear in my mind. Can you explain the use of a resistor? The concept of a resistor is very simple: it is a circuit element where the voltage across is proportional to the current through.
Why is it necessary to use a resistor in series with a led?
The slightest difference in LED or supply voltage may cause the LED to light very dim, very bright, or even destroy. A series resistor will ensure that slight differences in voltage have only a minor effect on the LED ‘s current, provided that the voltage drop across the resistor is large enough.
Which resistor should I use with my led?
The simplest circuit to power an LED is a voltage source with a resistor and an LED in series. Such a resistor is often called a ballast resistor. The ballast resistor is used to limit the current through the LED and to prevent that it burns.
How to calculate the value of resistor for led?
Summary For protecting the LED from high current we are using Resistors in series. Ohm’s law states that, V = IR The required value for the resistor can be obtained by the equation. R= (Vs – Vled )/I Source voltage, voltage drop, current, and color of LEDs determine the value of the resistor.
