The basic manometer is a U-shaped tube that measures pressure by the height of the liquid it will support. While most traditional U-form manometers don’t normally require recalibration, today’s digital manometers are built with various types of absolute, vacuum, gauge, or differential pressure sensors.
How do you calibrate a pressure control instrument?
Basic procedure of pressure gauge calibration.
- Connect the equipment’s as shown in above figure to calibrate the pressure gauge.
- Apply pressure 0%(zero adjust)
- Adjust the zero screw or put the pointer on 0%
- Apply pressure 100%(span adjustment)
- To correct the indication increase or decrease the sector arm.
How do you calibrate a differential pressure gauge?
Calibration procedure
- Check for functionality and any visual defect before calibration.
- Record all the details about the UUC.
- Open both ports and exposed to ambient.
- Connect the pneumatic hose on the positive or high side.
- Then generate the required pressure (5 test points or as per requirement).
How often should you calibrate a manometer?
After installation, it is recommended to do the pressure gauge calibration at least once a year. This applies to all gauges in all industries, no matter the application.
How manometers are calibrated?

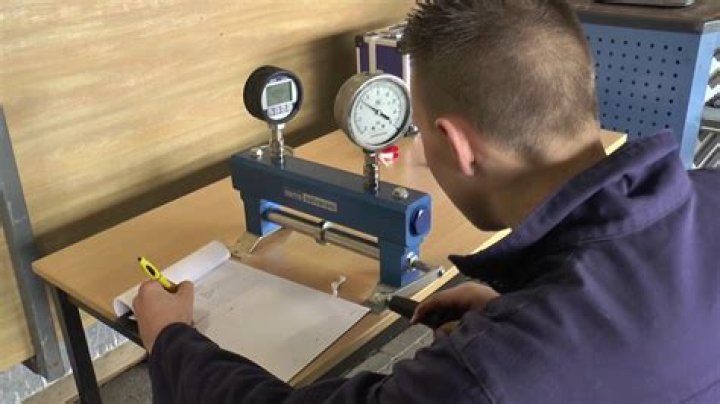

To calibrate a manometer, we shall need a reference device with higher accuracy than the device under test. We can use a digital pressure transmitter or even another manometer, as long as it has better accuracy. To do that, we need to ramp the pressure up and down through the measuring range.
Does au tube manometer require calibration?
It’s the U-tube manometer, which is a U-shaped glass tube partially filled with liquid. This manometer has no moving parts and requires no calibration. Manometry measurements are functions of gravity and the liquid’s density, both physical properties that make the U-tube manometer a NIST standard for accuracy.
How do you measure the accuracy of a pressure gauge?
While requirements differ from one industry to another, the following are general guidelines: Test gauges and standards: 0.25% through 0.10% full scale accuracies….What does pressure gauge accuracy mean?
| Accuracy class | error margin (Percentage of measurement spread) |
|---|---|
| 2.5 | ± 2.5% |
| 4 | ± 4% |
How often should I calibrate my equipment?
Monthly, quarterly, or semiannually. If you do mostly critical measurements and do them often, a shorter time span between calibrations means less chance of questionable test results. Many times, calibrating at shorter intervals will afford you with better specifications.
How long does a calibration certificate last?
A popular answer when it comes to what calibration interval to be given to an instrument that does not have a due date on it’s calibration certificate is to give it a one year interval.
What are the parts of en 837?
En 837 standard has 3 parts: Part three is about Diaphragm and capsule pressure gauges. In this picture, it has been written EN 837-1. That means the measurement element of the gauge here is a Bourdon tube. Something that is accordant with the number 3. If the gauge meets the accuracy requirements on only gas or liquid, then this shall be marked.
What is the BS EN 837 Test class for gauges?
A certificate confirming gauge has been tested in accordance with BS EN 837-1 :1998 (formally BS 1780) Accuracy Class 1.6 with full test results over 12 points. ***Only available with pressure gauges (not vacuum or compound)***
What is the s837 standard for pressure gauges?
S circled sign shows that this gauge is “Safely designed” in order to protect it in case of overpressure. Blow-out device, Blow-out back, baffle wall and laminated safety glass are some designs that in some cases must be provided. En 837 standard has 3 parts: Part three is about Diaphragm and capsule pressure gauges.
