The sole purpose of the narrow wide chainring is chain retention. Before narrow wide chainrings, it was always necessary to mount a chainguide to prevent the chain from dropping. Now when using a narrow wide chainring, you don’t need to use a chainguide at all.
Do you need narrow wide for 1x?
Best Chain For Narrow Wide Chainring 9, 10, 11, 12-speed chains have good flexibility on the cross-chain positions which is considered the normal chain position on a 1x setup. For a good performance and smooth pedaling and shifting, narrow-wide chainring is more recommended with narrow chains (9 and above).
Will an 8 speed chain work on a narrow wide chainring?
Yes it works fine. I’m running a 32t Raceface narrow/wide with an 8 spd chain on my converted single speed and i’ve had no problems at all.
Is Shimano narrow wide?
Shimano puts their spin on Narrow Wide chainrings, adds 11-46t cassette, quick link, new gearing, more! Maybe the most noteworty is Shimano’s entry into the narrow-wide chainring category – sort of. Shimano isn’t coming out and calling it narrow-wide, rather their DCE (Dynamic Chain Engagement) tooth profile.
What is half link chain?
What is a Half-Link Chain? Unlike the full-link chain, the half-link chain allows you to remove just a single link; this is made possible through the half-link featuring both an external and internal end. The ability to remove one link allows for fine-tuning of rear wheel placement.
What is chain ring?
Well, a chainring is the round, spiky bit connected to your cranks that pulls the chain round. A ‘classic’ road racing bike, for example, may use a 53t large chainring, while a bike more aimed at leisure and sportive riding may use a 50t large chainring as part of a hill-friendly ‘compact’ chainset.
Do I need a special chain for 1x?
There are no chains specific for 1x or double cranksets.
What size is single chainring?
1x chainrings come in 2 tooth increments and many 1x mountain bikes and gravel bikes come from the factory with a “standard” size chainring, usually 32t for mountain and 42t for gravel. These sizes became standard because they mirror the size of the middle (and most used) chainring in older 3x drivetrains.
Why are half-link chains better?
Half-link chains provide you with the flexibility to achieve your desired setting. The added advantage of fine-tune adjusting comes at a cost. Half-link chains are heavier than full-links. There is more material used within half-link chains to support the slight bend in each link’s plate.
Can I put a narrow wide chainring on a 2x setup?
View Full Version : Narrow wide chainring on a 2x setup? I think it would only work if you got off the bike and put the chain into gear manually the chainring would not let the chain go at all IMO. You’d need a way to make sure the chain meshes with the correct alternating tooth.
What is the point of a narrow wide chainring?
The whole idea of a narrow-wide is to prevent a chain from derailing from a chainring. So you would not be able to change gear ratios on a double or triple that included a narrow-wide chainring. An alternative to a narrow-wide chainring is a chain guide. The whole idea of a single chainring is the elimination of the front derailleur.

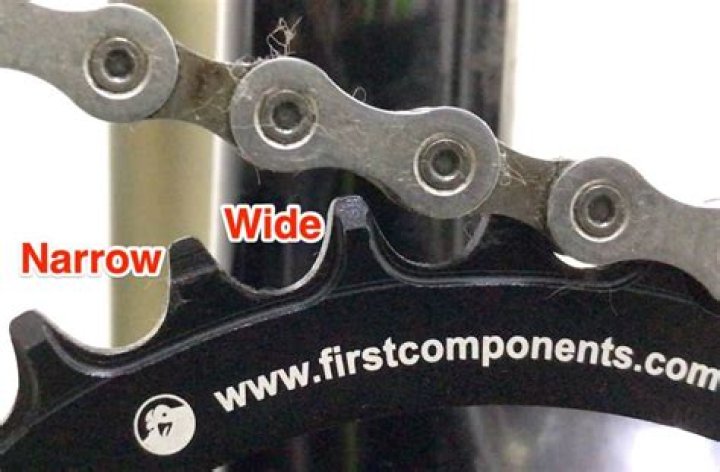

How does a wide-profile chainring work?
You can see how the wide profile moves into the chain link, holding chain and tooth firmly together. Multiplying the effect to include the 180° of the chainring the chain contacts as it travels around the drivetrain means the chain holds the chainring much more firmly than with the standard narrow-profile-tooth chainring.
What to do if my chain has narrow links?
If the narrow link goes onto the wide tooth, it’s probably not going to work. One thing you could do is get rid of your front derailleur but leave the granny ring on and manually shift the chain as needed. But honestly that sounds like a pretty big pain, and I’d personally rather run a front derailleur and guide.
