The first and most important reason to add the folding mechanism to the wingtips was so that the giant bird could access a greater range of airports. Its huge 235 ft 5 in wingspan is a full 11 feet longer than its predecessor, making it too wide to land at a Code E airport.

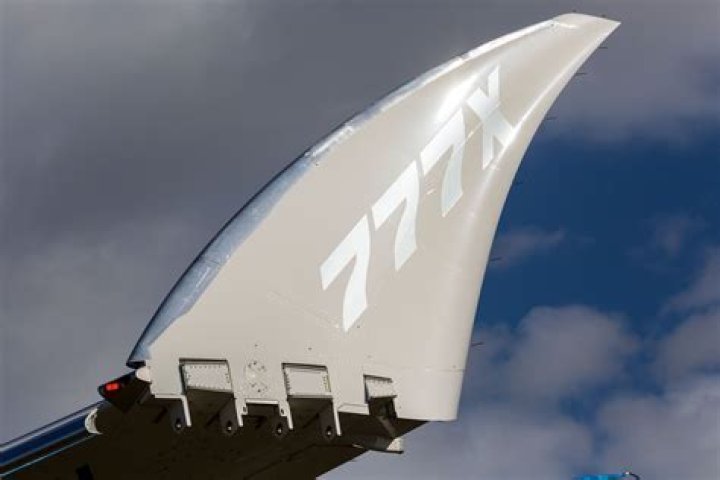

Why is 777X wingtip folding?
As the new carbon fiber wing has a longer (65 meters) span, Boeing came up with the solution to fold the tips in order to keep the 777X within ICAO’s Code E airport classification. The folding mechanism reduces the span by 3.5 meters as soon as the aircraft has touched down after landing and parks at the gate.
How do folding wingtips work?
A quick flip from vertical (fold) to horizontal (extend) starts the process. At the tip of the 777X’s carbon fiber wings, a hydraulic actuator rotates the tips to their inflight position. Once in place, electrical locking mechanisms, which only disengage when powered, hold the tips in place to fly.
What planes have folding wings?
Examples include the Boeing B-50 Superfortress and its folding tail. The Saab 37 Viggen and the Boeing 377 Stratocruiser have foldable rear fins that make them lower for entering hangars. The Boeing 777 (classic) twinjet wide-body airliner was offered with folding wingtips for confined airports.
How long are the wingtips on 777X?
11 feet
Folding wingtips are a first for commercial aviation. To stay within the size category of the current 777 with a less than 213 ft (65 m) wingspan, it features 11 feet (3.5 m) folding wingtips with the folding wingtip actuation system made by Liebherr Aerospace.
Why does b777 have no winglets?
Why does the 777 not have winglets? One reason that the 777 does not feature such wingtip extensions is the operational limits these would place on the aircraft. The 777-200LR and -300ER variants of the aircraft have a wingspan of 64.8 meters. This only just falls below the upper limit for the ICAO’s aerodrome code E.
How long are the folding wing tips of 777X?
What is the wingspan of an Airbus a380?
262′ 0″
Airbus A380/Wingspan
How does the 777X folding wing work?
By making the wingtips foldable, the 777X’s on ground wingspan is reduced to 212′ 8”, well within the parameters for Group V. This makes it capable of landing at a far greater range of airports, thereby allowing operators of the type to be more flexible with the routes and destinations it is deployed on.
Can f18 fly with wings folded?
You won’t believe it but U.S. Navy legendary planes (F-4, F-8 and F-14) could fly with folded wings, asymmetric configurations. To save space aboard the deck of U.S. flattops, aircraft built for carrier operations can fold their wings making room for more planes.
What was the first plane with folding wings?
First Commercial Airplane with Folding Wings, Boeing’s 777X Took Its Maiden Flight. The Boeing 777X’s folding wing tips are a first for commercial aviation.
Why does the Dreamliner not have winglets?
The 787 was a clean paper design What makes the Boeing 787 Dreamliner so different is that it does not have winglets because it was a clean sheet design. While standard wingtips can reduce drag by as much as 4.5%, the raked wing design can reduce it by 5.5%.
Why does the Boeing 777X have folding wingtips?
Boeing’s motivation for its including folding wingtips within the design was not wholly steered by fuel economy. With a fully-extended wingspan of 71.8 meters, the new 777X falls within the ICAO’s aerodrome Code F.
Are the 777X’s wingtips safe?
In May 2018 the FAA was urged to issue special conditions in reference to the safety of the 777X’s wingtips. In the course of their deliberations the FAA demanded several assurances from Boeing. The company was required to prove beyond doubt the load-bearing viability of the wingtips.
What is The wingspan of a 777X?
With a fully-extended wingspan of 71.8 meters, the new 777X falls within the ICAO’s aerodrome Code F. But with raked and folded wings (and a span of 64.8 meters) the type can comfortably arrive at gates designed for Code E. Aircraft in this group includes the current 777. Are folding wingtips safe? According to Boeing, yes!
How close to the runway can the Boeing 777X fly?
The centerline of B10 is 262 feet (80 meters) from parallel taxiway L, that’s just enough for the 777X to squeeze through on its way to the runway. This is precisely a spot for which Boeing designed the 777X’s folding wing tip.
