It’s called an “Air Gap.” Basically, it is to prevent dirty and contaminated water from backing up into the water supply through the dishwasher. It’s required by code in California but some people bypass this requirement and have something called a “High Loop” under their sink.
Where does the air gap go on a sink?
The majority of air gap installation occurs beneath the far edge of a sink basin’s rim. Air gaps create an outlet between waste water drain lines and appliances that discharge water, such as dishwashers and water filtration systems.
What is the minimum air gap required at a sink?
one inch
The water distribution air gap minimum size is also one inch but also requires that the air gap height be a minimum of two times the diameter of the indirect waste pipe if the size is over one-half of an inch.
How do I install an air gap without a garbage disposal?
Drain Connection With Air Gap (But No Garbage Disposal)
- Connect Hose to Air Gap. First, connect the dishwasher drain hose onto the small side of the air gap, mounted on the countertop or sink deck.
- Connect Hose to Drain Pipe.
- Secure With Hose Clamps.
Do dishwashers have a built in air gap?
In some areas, a high loop is the minimum requirement, but in many other jurisdictions, an air gap must be installed with all new dishwashers.
What is the installation requirement of a an approved air gap?
The air gap is required to be two times the diameter of the outlet of the waste pipe, which in this case is the relief valve on the RPDA. If you connect the two RPDA waste pipes, then the pipe size shall double in size where the two pipes connect and remain the same size the rest of the length of the drain line.
Is a garbage disposal really necessary?
Garbage Disposal Importance Having a garbage disposal unit installed in your home is a great idea, any plumber would highly recommend doing so because it is an effective way to deal with common kitchen waste such as uneaten food by shredding them into small pieces. As a result they can easily pass through plumbing.
What happens if your dishwasher doesn’t have an air gap?
Backflow is the unwanted reversal of water flow, ushering tainted water and contaminants back into the clean water supply. Dishwasher air gaps are a form of backflow prevention. Without an air gap (or other means of backflow prevention) your dishwasher will flood with contaminated water.
Why do you need an air gap?
An air gap will help to muffle some of the noises that are created by the dishwasher when it is washing the dishes. If you have ever turned on your dishwasher and then found a bunch of particles in the sink after the dishwashing cycles have finished, this is because the air gap has pumped the pieces of food and other bits of stuff into the sink to clear the drain lines.
What is under sink air gap?
Air gap (plumbing) Under the right conditions (if the water supply loses pressure and the sink is higher than the point at which the water supply enters the house, for instance), the dirty water in the sink will be siphoned into the water pipes through the hose and faucet. The dirty water then will be dispersed throughout the drinking water system.
What is the air gap on a sink?
An air gap, as it relates to the plumbing trade, is the unobstructed vertical space between the water outlet and the flood level of a fixture. A simple example is the space between a wall mounted faucet and the sink rim (this space is the air gap).

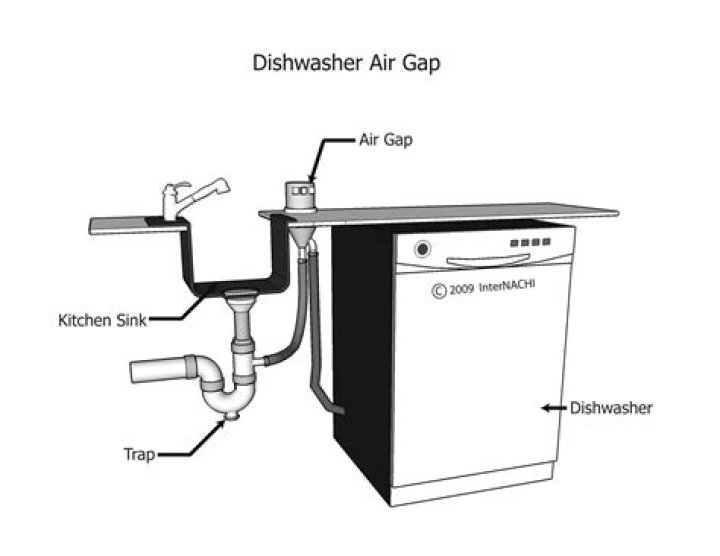

What does a dishwasher air gap do?
A dishwasher air gap ensures the fresh water supply will not be contaminated. An air gap for a dishwasher is a requirement set forth by local plumbing codes. It is a device designed to ensure water flows only in the right direction during the dishwasher cycle.
