A careful study of these results will show that, in general, boundary layer thickness grows faster for turbulent flow, and wall shear and total friction drag are greater for turbulent flow than for laminar flow given the same Reynolds number.
What is the velocity profile for turbulent boundary layer?
Mean Velocity Profiles – Turbulent Boundary Layers: The vertical axis (y) denotes the distance above the boundary. The fluid velocity at the boundary (y = 0) is zero. At some distance above the boundary the velocity reaches a constant value, U∞, called the free stream velocity.
Which boundary layer has more energy laminar or turbulent?
A boundary layer may be laminar or turbulent. Thus there is an exchange of mass, momentum and energy on a much bigger scale compared to a laminar boundary layer. A turbulent boundary layer forms only at larger Reynolds numbers.
Why does a laminar boundary layer become turbulent?
When the velocity was low, the dyed layer remained distinct through the entire length of the large tube. When the velocity was increased, the layer broke up at a given point and diffused throughout the fluid’s cross-section. The point at which this happened was the transition point from laminar to turbulent flow.
How does velocity affect boundary layer?
The fuller velocity profile of the turbulent boundary layer allows it to sustain the adverse pressure gradient without separating. Thus, although the skin friction is increased, overall drag is decreased.
Do laminar boundary layers separate more easily than turbulent boundary layers?
The laminar boundary layer separates more easily than a turbulent boundary layer under an adverse pressure gradient due to lack of inertia of the fluid within the boundary layer.
What is velocity boundary layer?
The region in which flow adjusts from zero velocity at the wall to a maximum in the main stream of the flow is termed the boundary layer. The concept of boundary layers is of importance in all of viscous fluid dynamics and also in the theory of heat transfer.
How do you calculate turbulence intensity?
A dimensionless parameter that is often used as a measure of the turbulence intensity (I) is given by: I = sU / M (7) where M is the three-dimensional wind field.
How does laminar flow change to turbulent flow?
As the Reynolds number increases, such as by increasing the flow rate of the fluid, the flow will transition from laminar to turbulent flow at a specific range of Reynolds numbers, the laminar–turbulent transition range depending on small disturbance levels in the fluid or imperfections in the flow system.
How does laminar flow turn into turbulent flow?
To address a subtlety in your question: laminar flow becomes turbulent with an increase in distance from the leading edge because the effect of fluid viscosity is progressive. Imagine the passing fluid being comprised of three adjacent layers – inner, middle and outer.
Does boundary layer increase with velocity?
It is quite evident that as velocity increases boundary layer decreases. The example may be taken for a fluid flow on a flat plate.
Why is turbulent boundary layer thicker than laminar boundary layer?
The further we move away from the wall, the smaller the velocity gradient and the retarding action of the shearing stresses decreases. This means that because of the greater velocity gradient at the wall the frictional shear stress in a turbulent boundary is greater than in a purely laminar boundary layer.
What is the difference between laminar and turbulent flat plate boundary layer?

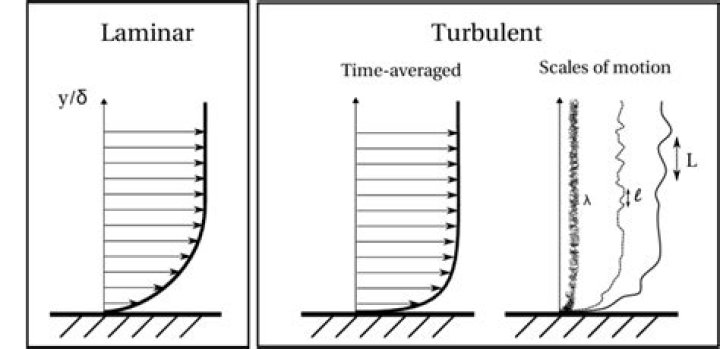

The turbulent flat plate boundary layer velocity profile: The time-averaged turbulent flat plate (zero pressure gradient) boundary layer velocity profile is much fuller than the laminar flat plate boundary layer profile, and therefore has a larger slope u/y at the wall, leading to greater skin friction drag along the wall.
What is the velocity profile of turbulent boundary layer?
Turbulent Velocity Profile: The Logarithmic Velocity Profile: The shape of the velocity profile within a turbulent boundary layer is well-established by theory and experiment. The profile has specific characteristics very close to the bed where viscosity controls the vertical transport of momentum, and different characteristics farther
What is the velocity distribution in turbulent flow?
In turbulent flow, a fairly flat velocity distribution exists across the section of pipe, with the result that the entire fluid flows at a given single value. Figure 5 helps illustrate the above ideas. The velocity of the fluid in contact with the pipe wall is essentially zero and increases the further away from the wall.
How does a thermal boundary layer develop?
Similarly as a velocity boundary layer develops when there is fluid flow over a surface, a thermal boundary layer must develop if the bulk temperature and surface temperature differ. Consider flow over an isothermal flat plate at a constant temperature of Twall. At the leading edge the temperature profile is uniform with Tbulk.
