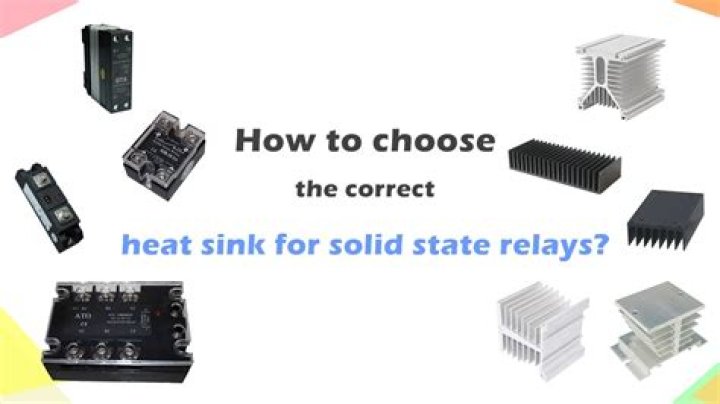

HEATSINKS AND SSRs. Adequate heatsinking, including consideration of air temperature and flow, is essential to the proper operation of a solid state relay (SSR). It is necessary that the user provide an effective means of removing heat from the SSR package. Loads greater than 4 Amps will require heat sinks.

How do you wire a SSR?

Connect one terminal to the positive terminal (R) of the SSR. Connect the second terminal to the positive terminal of battery 1. Load: Connect the positive terminal of the load to the negative terminal (L) of the SSR.

How hot can an SSR get?

around 80 to 100 degrees
The Solid-state Relay (SSR) is too hot to touch. Does it have any trouble? Although when the maximum current flows in the rated range, the temperature of the SSR reaches around 80 to 100 degrees, it is not abnormal. However, pay careful attention to the heat loss.

What makes a SSR solid state relay different from a normal relay?

The main difference between solid state relays and general relays is that there is no movable contacts in solid state relay (SSR). Solid state relay (SSR) do not contain any mechanical contacts and are mostly of electronic parts. Thus, SSR have a wide range of features that mechanical relays do not have.

Can an AC SSR switch DC?

Mains Voltage AC SSRs cannot switch DC. For example, AC is 60 Hz in North America, so the AC SSR has 120 opportunities per second to turn off (the SSR will only stay off if the control signal is low).

Are solid state relays polarity sensitive?

Disadvantages of SSRs compared to mechanical relays include: Voltage/current characteristic of semiconductor rather than mechanical contacts: When closed, higher resistance (generating heat), and increased electrical noise. Electromechanical relays are not affected by polarity.

What device is used to protect solid state relays from damage in a short circuit condition?

zener diode
To fully protect the SSR, a zener diode placed across the contacts of the SSR is highly recommended. The zener diode will protect the SSR from any positive voltage transients when the SSR is off, while diodes, intrinsic to the MOSFET switch, will protect the SSR from any negative voltage transients.

How many types of SSR are there?

According to the type of load, SSR can be divided into two types: DC Solid State Relay (DC-SSR) and AC Solid State Relay (AC-SSR). The DC-SSRs act as a load switch on the DC power supplies, and the AC-SSRs act as a load switch on the AC power supplies.

How do SSR fail?

If an ambient temperature exceeds the rated value, the SSR output elements may be damaged. If the SSR is used with loose screws of its output terminals or imperfect solder, abnormal heat generation while current flowing causes the SSR to burn out. Perform the proper wiring and soldering.

Can a SSR switch DC?

An SSR can be designed to switch a DC or an AC load, and some types are capable of switching both AC and DC loads. An SSR’s output type (AC, DC, or AC/DC) is determined by the type of switching device: a transistor (either bipolar or MOS), an SCR, or a TRIAC.

What causes SSR to fail?

If an ambient temperature exceeds the rated value, the SSR output elements may be damaged. If the SSR is used with loose screws of its output terminals or imperfect solder, abnormal heat generation while current flowing causes the SSR to burn out.

How can I protect my SSR?

To fully protect the SSR, a zener diode placed across the contacts of the SSR is highly recommended. The zener diode will protect the SSR from any positive voltage transients when the SSR is off, while diodes, intrinsic to the MOSFET switch, will protect the SSR from any negative voltage transients.
