When Exchange 2013 RTM was announced on October 11, 2012, it shipped without the Edge Transport role. Customers who required their SMTP connections to terminate in the perimeter network were told they could still use Edge Transport 2007 or 2010 servers as an SMTP front-end to Exchange 2013.

Where would you install an Exchange Edge Transport Server?

We recommend that you install Edge Transport servers in a perimeter network that’s outside of your organization’s internal Active Directory forest.

How do I install Microsoft Exchange 2013?

Checklist for a new installation of Exchange 2013

  1. Read the release notes.
  2. Verify system requirements.
  3. Confirm prerequisite steps are done.
  4. Configure disjoint namespace.
  5. Install the Mailbox server role.
  6. Install the Client Access server role.
  7. Install the Edge Transport server role.
  8. Create an EdgeSync subscription.

What is Edge Transport role in Exchange 2013?

Edge Transport servers minimize the attack surface by handling all Internet-facing mail flow, which provides SMTP (Simple Mail Transfer Protocol) relay and smart host services for your Exchange organization. These agents provide protection against spam and apply transport rules to control mail flow.

How do I check my Exchange 2013 Edge?

Run the Get-EdgeSubscription cmdlet on an Exchange server in your organization. This cmdlet retrieves the list of Edge Subscriptions. Each Edge Transport server that’s subscribed to the Exchange organization has a separate Edge Subscription.

How do I find my hub transport server?

Use the Get-TransportServer cmdlet to view settings that are associated with the Hub Transport server role or the Edge Transport server role. Note: In Exchange 2013 or later, use the Get-TransportService cmdlet instead. If you have scripts that use Get-TransportServer, update them to use Get-TransportService.

How do I setup my edge Transport server?

Edge Transport Server Procedures

  1. Step 1: Create a dedicated Send connector to only send messages to the internet.
  2. Step 2: Create a dedicated Send connector to only send messages to the Exchange organization.
  3. Step 3: Modify the default Receive connector to only accept messages from the internet.

How do I license my edge Transport server?

License the Edge Transport server. Open ports in the firewall for mail flow and EdgeSync synchronization. Verify that the Mailbox servers and the Edge Transport server can locate one another using DNS name resolution. On the Mailbox Server, configure the transport settings to be replicated to the Edge Transport server.

How do I install Microsoft Exchange?

Install the Exchange Mailbox server role

  1. Download the latest version of version of Exchange.
  2. In File Explorer, right-click on the Exchange ISO image file that you downloaded, and then select Mount.
  3. The Exchange Server Setup wizard opens.
  4. The Copying Files page shows the progress of copying files to the local hard drive.

What are the prerequisites needed to install Exchange Server?

Exchange 2016 Mailbox servers on Windows Server 2012 or Windows Server 2012 R2

  • a. . NET Framework 4.8.
  • b. Visual C++ Redistributable Package for Visual Studio 2012.
  • c. Visual C++ Redistributable Package for Visual Studio 2013.
  • d. IIS URL Rewrite Module.
  • e. Update for Universal C Runtime in Windows (KB2999226)
  • f.

Do I need an edge server?

Edge server is an optional role, not must. With Edge server, external message are first delivered to the Edge Transport Server role, after going through anti-spam and antivirus filters, it forwards the messages to internal network.

How do I subscribe to edge transport server?

To deploy an Edge Transport server and subscribe it to an Active Directory site, follow these steps:

  1. Install the Edge Transport server role.
  2. Prepare for the Edge Subscription:
  3. On the Edge Transport server, create and export an Edge Subscription file by running the New-EdgeSubscription cmdlet.

How to install Exchange Server 2013 edge transport role?

Installing Exchange Server 2013 Edge Transport Role Download the Exchange Server 2013 setup files (Service Pack 1 or later) to the server and run the following command from an elevated command prompt to perform the install. C:Adminex2013cu5>setup /m:install /r:et /IAcceptExchangeServerLicenseTerms

What is rereintroduced in exchange 2013 SP1?

Reintroduced in Exchange 2013 SP1 is the Edge Transport server role. This server role is for message hygiene purposes for Internet messages.

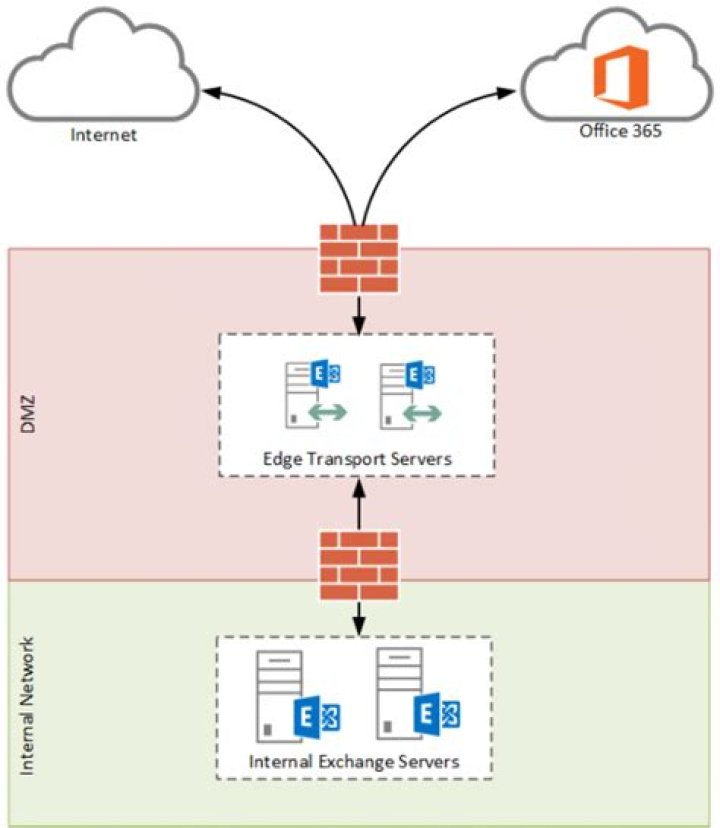

Where is the edge Transport server located?

The Edge Transport server is deployed outside the Exchange organization as a stand-alone server in the perimeter network or as a member of a perimeter network Active Directory domain. You need to manually configure the correct DNS suffix for the Edge Transport server role before you install Exchange 2013.

What’s new in exchange 2013 Service Pack 1?

Applies to: Exchange Server 2013. The Edge Transport server role has been re-introduced in Exchange Service Pack 1. Edge Transport provides improved anti-spam protection for the Exchange organization. The Edge Transport server also applies policies to messages in transport between organizations.
