In short, this means that RAID 4 does not stripe data at the block level, but it uses byte levels for striping (block-level striping with a dedicated parity disk). There are also similarities in relation to RAID 5, but it confines all parity data to a single drive. RAID 4 does not use distributed parity.
How is parity calculated in raid?
Calculating the parity information is quite simple: you just apply a XOR operation between the data that is stored on the other 2 disks. Our third disk would now store the parity information of 0000 0011 – the decimal value 3….Parity Calculation
- A XOR B = Parity.
- A XOR Parity = B.
- B XOR Parity = A.

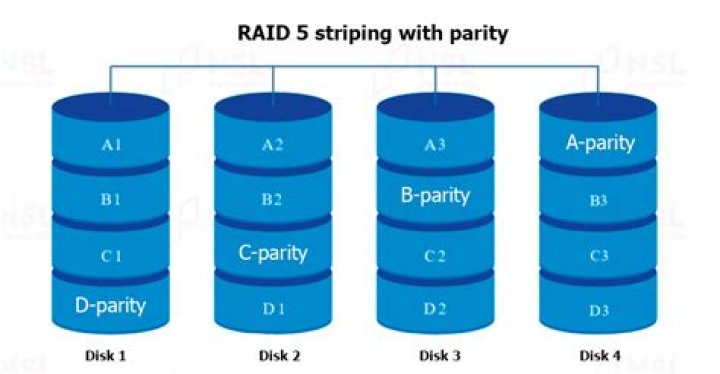

Which RAID uses parity?
RAID 5
RAID 5 is a type of RAID that offers redundancy using a technique known as “parity”. Parity is a type of extra data that is calculated and stored alongside the data the user wants to write to the hard drive.
Which means RAID Level 4?
Redundant Array of Independent Disk
RAID 4 stands for Redundant Array of Independent Disk level 4. 2. In RAID 3 technology, Byte-level Striping is used. In RAID 4 technology, Block-level Striping is used.
What is RAID parity?
A. R. Parity computations are used in RAID drive arrays for fault tolerance by calculating the data in two drives and storing the results on a third. The parity is computed by XOR’ing a bit from drive 1 with a bit from drive 2 and storing the result on drive 3 (to learn about XOR, see OR).
Which RAID does not use parity?
RAID 0
RAID 0 (also known as a stripe set or striped volume) splits (“stripes”) data evenly across two or more disks, without parity information, redundancy, or fault tolerance.
What is parity RAID count?
Parity computations are used in RAID drive arrays for fault tolerance by calculating the data in two drives and storing the results on a third. The parity is computed by XOR’ing a bit from drive 1 with a bit from drive 2 and storing the result on drive 3 (to learn about XOR, see OR).
What is the difference between RAID 4 and RAID 5?
RAID 4 implements parity by using a dedicated drive to house all parity data, while RAID 5 distributes parity across all drives in the RAID group. RAID 5 uses the equivalent of a single drive for parity operations but distributes parity data among all drives in the RAID set.
Which RAID level is best?
RAID 10
RAID 10 is a combination of RAID 1 and 0 and is often denoted as RAID 1+0. It combines the mirroring of RAID 1 with the striping of RAID 0. It’s the RAID level that gives the best performance, but it is also costly, requiring twice as many disks as other RAID levels, for a minimum of four.
Does raid 4 use distributed parity?
RAID 4 does not use distributed parity. RAID 4 requires at least three disks for complete implementation and configuration. What is more, it also needs hardware support for parity calculations. This makes it possible to recover data by the appropriate mathematical operations. If we asked: what is RAID 4 for? we would point out one particular need.
How do I get parity nibble 0101 in RAID 3?
1 XOR 1 XOR 1 XOR 1 which can also be displayed as: If we then run this operation on the remaining bits within the nibble we achieve a Parity nibble of 0101 as shown in the table below: RAID 3 requires a minimum of 3 physical storage mediums.
What is the difference between RAID 3 and RAID 4?
RAID 4 is very similar to RAID 3. The main difference is the way of sharing data. They are divided into blocks (16, 32, 64 or 128 kB) and written on disks – similar to RAID 0. For each row of written data, any recorded block is written on a parity disk.
What is raidraid 5?
RAID 5 = Where Parity is distributed in a regular fashion across all of the member disks in the array. Distributed Parity removes the bottleneck created by using a single dedicated Parity Disk.Fault Tolerance = Total number of disks -1
