The calculation is simply the maximum output current of the inverter multiplied by a 125 percent safety factor, then rounded up to the nearest breaker size.
How do you size a breaker for solar panels?

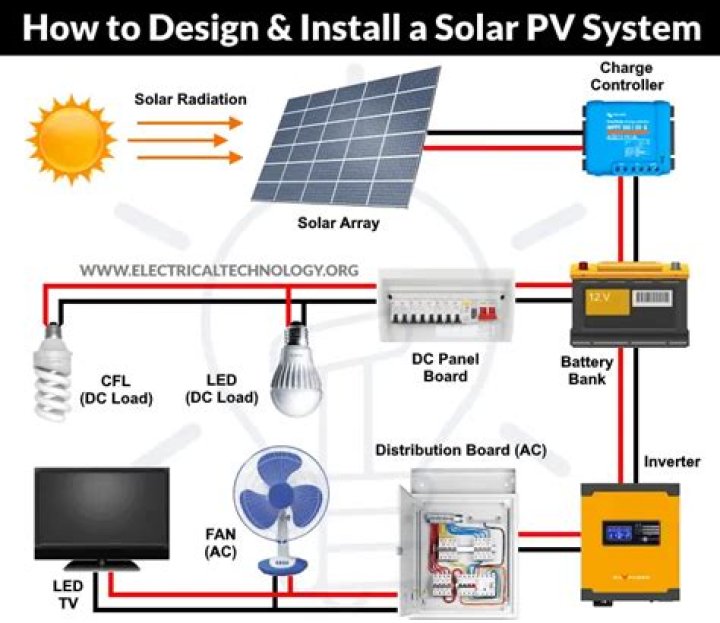

Breaker Sizes NEC requires the breakers be sized at 125% of the inverter’s rated output. So a 7680W inverter that outputs 240V, outputs 32A (7680W ÷ 240V = 32A). That requires a 40A breaker (32A x 125% = 40A).
What are the three most common PV system failures?
The most common long-term failures are: Hot spots due to manufacturing defects in the cells, hot cells caused by high current flow in a de-energized state, potential induced degradation (PID) caused by leakage currents to earth ground, low cell conversion rate due to cracks within the cell, delamination caused by …
How do solar arrays track the sun?
Single-axis solar trackers track the sun east to west, rotating on a single point, moving either in unison, by panel row or by section. Dual-axis trackers rotate on both the X and Y axes, making panels track the sun directly.
What is PV combiner box?
Solar photovoltaic array combiners (solar panel combiner boxes) are commonly used to combine several solar panels (or strings of panels) into a common bus. They are basically junction boxes that are specially designed for the types of wiring used in PV systems.
What circuit breaker do I need for solar panels?
In the case of panels in parallel, a 30-amp fuse is required for each panel. If your panels are smaller than 50 watts, and use only 12 gauge wires, and 20 amp fuses are required.
What is the 120 rule?
Basically, the NEC 120% rule allows solar PV equipment to be installed in electrical boxes up to 120% of the installed electrical equipment safety label rating.
What is the failure rate of solar?
The reliability and lifespan of solar panels is excellent, according to a recent study by NREL. The researchers looked at 54,500 panels installed between 2000 and 2015. They found that each year, a scant 5 out of 10,000 panels failed. That means that solar panels have a failure rate of only 0.05%.
Can you replace the glass on a solar panel?
A solar panel with broken glass could still work fine. Two, the glass surface will not damage any further. Most solar owners in Orange County have some DIY hacks, such as covering the surface with polyurethane. However, this peels off after some time, and replacing the cracked glass with new glass can prove expensive.
What is solar PV tracker?
PV solar trackers adjust the direction that a solar panel is facing according to the position of the Sun in the sky. By keeping the panel perpendicular to the Sun, more sunlight strikes the solar panel, less light is reflected, and more energy is absorbed. That energy can be converted into power.
Which is the most efficient solar tracker?
Single-axis trackers are nearly 32.17% efficient compared to a fixed solar tracker mount panel. These trackers follow the Sun from East to West, providing consistent power output all day long. The trackers generate 15-16% higher annual power as compared to a static station of the same installed capacity.
How do solar panel mounting and tracking systems work?
Solar panel mounting and tracking systems come in a variety of different options and work to make your solar panel array as effective and efficient as possible. Ideally, in order to ensure your panels are receiving as much sunlight as possible, sunlight must be perpendicular to your panels.
How much does it cost to install a tracked solar array?
Tracking equipment can cost anywhere from $500 per panel to over $1,000 per panel. If you included a single axis tracking system on the same array, it would drive the cost up to about $20,000. That’s a premium of 57% over the cost of the fixed array for just 35% more solar output.
Do solar trackers increase solar panel energy production?
While solar trackers will increase the solar panel system’s energy production, they are very expensive and can potentially double the cost of installing solar panels. In many cases, it is cheaper to install more solar panels to increase the system’s energy output than it is to install a solar tracker.
What type of circuit breaker do I need for my solar system?
The power coming from your grid tie solar system is 240VAC, so you will need a double pole circuit breaker of the right current rating (see 2). These nothing special, just make sure you match the make and style of your existing circuit breakers (different manufactures are not interchangeable with one another).
