Sputtering targets are used to produce low-radiation coated glass – also known as Low-E glass – which is commonly used in building construction because of its ability to save energy, control light, and for aesthetics. Demands for renewable energy are on the rise.
What is meant by sputtering process?
In physics, sputtering is a phenomenon in which microscopic particles of a solid material are ejected from its surface, after the material is itself bombarded by energetic particles of a plasma or gas. It is a physical vapor deposition technique.
What is purpose of sputtering?
Sputtering is a Physical Vapor Deposition vacuum process used to deposit very thin films onto a substrate for a wide variety of commercial and scientific purposes. Sputtering occurs when an ionized gas molecule is used to displace atoms of a specific material.
What is the principle of sputtering?

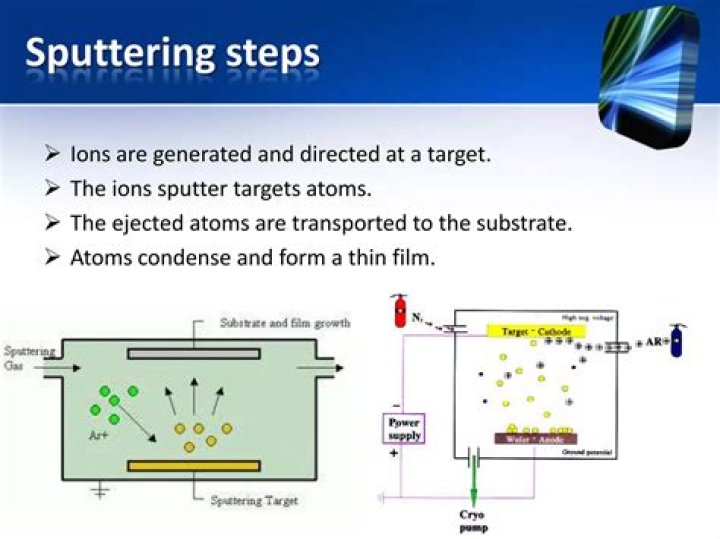

The principle of Sputtering is to use the energy of a plasma (partially ionized gas) on the surface of a target (cathode), to pull the atoms of the material one by one and deposit them on the substrate.
What are semiconductor targets?
Sputtering Target: An Important Component of Semiconductor Materials. Semiconductor materials can be divided into wafer materials and packaging materials. The sputtering target is the target material of high-speed charged particle bombardment.
What is a sputtering chamber?
Sputtering is a plasma based deposition process in which energetic ions are accelerated towards a target. In a typical sputtering deposition process, a chamber is first evacuated to high vacuum to minimize the partial pressures of all background gases and potential contaminants.
What is a sputter tool?
A magnetron sputtering source is a tool to deposit thin film that mounts to a vacuum chamber by means of either flanges or feedthroughs and consists of a water cooled cathode/target holder with an embedded magnet array and appropriate grounded shielding.
What is the difference between sputtering and evaporation?
In thermal evaporation, the source material is brought to evaporation temperature either by the heat generated by the resistance of a metal container or by bombardment of a beam of high energy electrons. – Higher energy with sputtering produces higher packing densities and better adhesion if stresses are low.
How long does a sputter target last?
Answer: The life of a sputter target is typically quantified in terms of units of power and time, like kilowatt/hours. For a target being sputtered at 500 watts for a total duty cycle of 100 hours that’s 50 kilowatt/hours.
What are the types of sputtering?
Several types of sputtering systems are used in practice including DC diode, RF-diode, magnetron diode, and ion beam sputtering.
What is evaporation and sputtering?
What are registered targets?
Registered targets are trapshooting competitions where the final score for each shooters is sent off to the ATA and added to that shooters yearly, and lifetime total and average. Since all registered shoots are governed by the same rules, this allows shooters to be classified and handicapped with fellow shooters from around the country.
What is RF magnetron sputtering?
Radio frequency magnetron sputtering, also called RF magnetron sputtering is a process that is used to make thin film, especially when using materials that are non-conductive. In this process, a thin film is grown on a substrate that is placed in a vacuum chamber.
What is RF sputtering?
RF or Radio Frequency Sputtering is the technique involved in alternating the electrical potential of the current in the vacuum environment at radio frequencies to avoid a charge building up on certain types of sputtering target materials, which over time can result in arcing into the plasma that spews droplets creating quality control issues on the
What is a sputtering system?
Sputtering is a process of thin film deposition in which a solid target material is ejected onto the surface of a substrate to form a thin coating. A sputtering system is a machine in which a sputtering process occurs. It contains the entire process and allows a user to adjust the temperature, power, pressure, target, and substrate materials.
