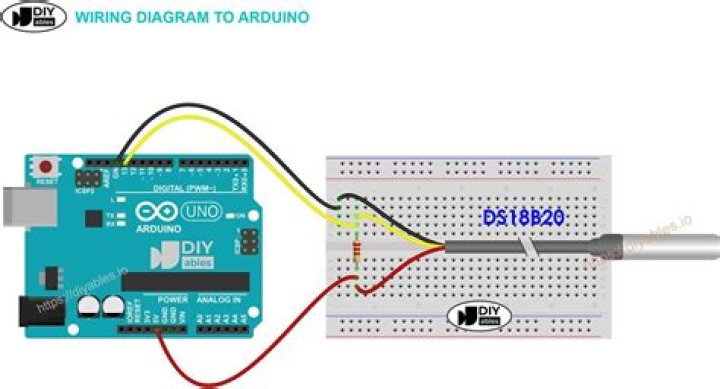

Connecting DS18B20 With Arduino
- Connect the GND pin or the black wire of the sensor to the GND.
- Connect the Vcc pin or the Red wire of the sensor to the 5V supply.
- Connect the signal pin or the yellow wire to the 5V through a 4.7kohm resistor and also connect this signal pin to the Digital Pin no-12 of Arduino.
How do I connect Arduino to water temperature sensor?
First plug the sensor on the breadboard the connect its pins to the Arduino using the jumpers in the following order: pin 1 to GND; pin 2 to any digital pin (pin 2 in our case); pin 3 to +5V or +3.3V, at the end put the pull-up resistor.
How do I install OneWire library?
Installing Libraries
- Open your Arduino IDE and go to Sketch > Include Library > Manage Libraries. The Library Manager should open.
- Type “OneWire” in the search box and install the OneWire library by Paul Stoffregen.
- Then, search for “Dallas” and install the Dallas Temperature library by Miles Burton.
What is DS18B20?
The DS18B20 is one type of temperature sensor and it supplies 9-bit to 12-bit readings of temperature. The communication of this sensor can be done through a one-wire bus protocol which uses one data line to communicate with an inner microprocessor.
Is DS18B20 analog or digital?
The DS18S20 lacks the configuration register that allows the DS18B20 to change resolution.
How accurate is DS18B20?
The DS18B20 has an accuracy of ±0.5°C Accuracy from -10°C to +85°C, but its still possible yours might be outside the error range depending were you got them from there of lots of rejects for sale on the web.
What is the output of DS18B20?
The resolution of the DS18B20 is configurable (9, 10, 11, or 12 bits), with 12-bit readings the factory default state. This equates to a temperature resolution of 0.5°C, 0.25°C, 0.125°C, or 0.0625°C.
How do I connect my DS18B20 to my Raspberry Pi?
Building the Raspberry Pi ds18b20 Circuit
- First, connect the 3v3 pin from the Pi to the positive rail and a ground pin to the ground rail on the breadboard.
- Now place the DS18B20 sensor onto the breadboard.
- Place a 4.7k resistor between the positive lead and the output lead of the sensor.
What is DS18B20 temperature sensor?
The DS18B20 is a 1-wire programmable Temperature sensor from maxim integrated. It is widely used to measure temperature in hard environments like in chemical solutions, mines or soil etc. It can measure a wide range of temperature from -55°C to +125° with a decent accuracy of ±5°C.
What is the use of temperature sensor?
A temperature sensor is a device used to measure temperature. This can be air temperature, liquid temperature or the temperature of solid matter. There are different types of temperature sensors available and they each use different technologies and principles to take the temperature measurement.
How add .h library to Arduino?
Open the IDE and click to the “Sketch” menu and then Include Library > Manage Libraries.
- Then the Library Manager will open and you will find a list of libraries that are already installed or ready for installation.
- Finally click on install and wait for the IDE to install the new library.
How do I use the DS18B20 temperature sensor with the Arduino?
The DS18B20 temperature sensor is a one-wire digital sensor. To use this sensor with the Arduino, you need the OneWire and the DallasTemperature libraries. You can use one sensor or multiple sensors on the same data line because you can identify each sensor by its unique address.
What is the 5V mode on a DS18B20?
VDD. 5V (normal mode) or GND (parasite mode) Each DS18B20 temperature sensor has a unique 64-bit serial code. This allows you to wire multiple sensors to the same data wire. So, you can get temperature from multiple sensors using just one Arduino digital pin.
How to print data from DS18B20 on the serial monitor?
To print the data from DS18B20 on the serial monitor of the IDE you have to build the circuit by following the schematic.
Can I use this library on all Arduino boards?
This library is compatible with all architectures so you should be able to use it on all the Arduino boards. To use this library, open the Library Manager in the Arduino IDE and install it from there.
