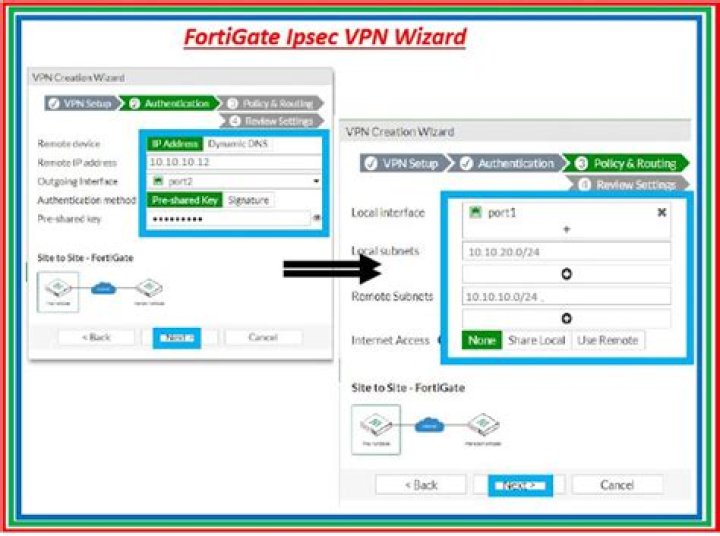

To configure the IPSec VPN tunnels on a FortiGate 60D firewall:
- Configure the VPN Parameters. Define the VPN parameters for the primary and backup VPN tunnels.
- Define the IPv4 Policies. Define the IPv4 policies to allow access to the newly configured tunnels.
- Establish the Static Routes.
- Define the Policy Routes.
How do I setup a VPN tunnel?
Step 2. Create the IPsec Tunnel on Location 1
- Log into the X-Series Firewall at Location 1.
- Go to the VPN > Site-to-Site VPN page.
- In the Site-to-Site IPSec Tunnels section, click Add.
- Enter a Name for the VPN tunnel.
- Configure the settings for Phase 1 and Phase 2.
- Specify the network settings:
How does SSL VPN work in FortiGate?
In this type of SSL VPN, a user visits a website and enters credentials to initiate a secure connection. The SSL portal VPN allows for a single SSL connection to a website. Additionally, the user can access a variety of specific applications or private network services as defined by the organization.
Is FortiClient VPN free?
For FortiGate administrators, a free version of FortiClient VPN is available which supports basic IPsec and SSL VPN and does not require registration with EMS. This version does not include central management, technical support, or some advanced features.
How does VPN tunnel work?
A VPN tunnel is an encrypted link between your computer or mobile device and an outside network. A VPN tunnel connects your smartphone, laptop, computer, or tablet to another network in which your IP address is hidden and all the data you generate while surfing the web is encrypted.
What is the difference between VPN and tunnel?
A VPN is a secure, encrypted connection over a publicly shared network. Tunneling is the process by which VPN packets reach their intended destination, which is typically a private network.
How do I access FortiGate VPN?
Configure SSL VPN settings:
- Go to VPN > SSL-VPN Settings.
- For Listen on Interface(s), select wan1.
- Set Listen on Port to 10443.
- Optionally, set Restrict Access to Limit access to specific hosts, and specify the addresses of the hosts that are allowed to connect to this VPN.
- Choose a certificate for Server Certificate.
How do I create a GRE tunnel in FortiGate?
Steps to Create a GRE Tunnel within FortiGate
- Create system GRE tunnel and assign local and remote gateways (WAN IPs)
- Modify system interface GRE settings and assign local/remote tunnel IPs (Tunnel IPs)
- Create firewall policies to allow traffic.
What is SSL VPN tunnel mode?
An SSL tunnel VPN enables users to securely access multiple network services via standard web browsers, as well as other protocols and applications that are not web-based. VPNs create secure, encrypted connections between a device and a network.
How does SSL VPN connect to FortiGate?
How do I create a VPN tunnel?
Console Go to the VPN page in the Google Cloud Platform Console. Click Create. On the create a VPN connection page, supply the following in the Supply the following in the Tunnels section for the new tunnel item: Name — The name of the VPN tunnel. If you need to create more tunnels on the same gateway, click Add tunnel and repeat the previous step.
What is SSL tunnel VPN?
How SSL VPNs work. An SSL tunnel VPN enables users to securely access multiple network services via standard web browsers, as well as other protocols and applications that are not web-based. The VPN tunnel is a circuit established between the remote user and the VPN server; the server can connect to one or more remote websites,…
How does a SSL VPN work?
SSL VPN ( Secure Sockets Layer virtual private network) SSL VPN enables devices with an internet connection to establish a secure remote-access VPN connection with a web browser. An SSL VPN connection uses end-to-end encryption ( E2EE ) to protect data transmitted between the endpoint device client software and the SSL VPN server through which the client connects securely to the internet.
