To change the range of X and Y axes, we can use xlim() and ylim() methods….Steps

  1. Set the figure size and adjust the padding between and around the subplots.
  2. Create x and y data points using numpy.
  3. Plot x and y data points using plot() method.
  4. Set the X and Y axes limit.
  5. To display the figure, use show() method.

How do I change the axis limits in Python?

Use matplotlib. pyplot. axis() to set the axis limits

  1. x1 = [0, 3, 5] Initialize data for the plot.
  2. y1 = [10, 35, 50]
  3. limits = [ 0, 5, 0, 50]

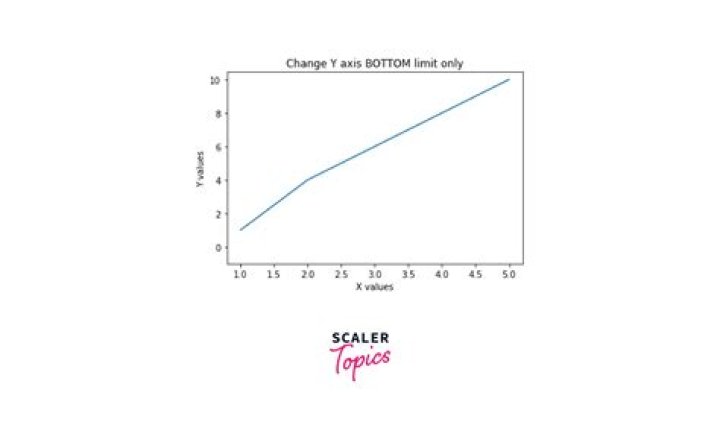

How do I limit Y values in Matplotlib?

If you want to limit the range of the y coordinates shown in the graph plot, you can do so in matplotlib. This is done with the set_ylim() function. Into these limit functions, you are able to pass in a list consisting of 2 values. The first value is the lower limit and the second value is the upper limit.

How do you set Y-axis limits?

ylim( limits ) sets the y-axis limits for the current axes or chart. Specify limits as a two-element vector of the form [ymin ymax] , where ymax is greater than ymin . yl = ylim returns the current limits as a two-element vector.

How do I change my axis in Seaborn?

Use seaborn. axisgrid. FaceGrid. set() to set axis limits for a FacetGrid

  1. a_plot = sns. lmplot(‘X’,’Y’, data)
  2. a_plot. set(xlim=(0, 45))
  3. a_plot. set(ylim=(0, 2000))

How do I create an axis in Matplotlib?

Use matplotlib. pyplot. xlim() and matplotlib. pyplot. ylim() to set axis ranges

  1. plot(range(5))
  2. xlim(-5, 5)
  3. ylim(-5, 5)

What is the function of YLIM () in Matplotlib?

The ylim() function in pyplot module of matplotlib library is used to get or set the y-limits of the current axes.

How do I change the Y-axis scale in Seaborn?

How do I change the Y axis scale in ggplot2?

Use scale_xx() functions It is also possible to use the functions scale_x_continuous() and scale_y_continuous() to change x and y axis limits, respectively.

How do I increase Xticks in Matplotlib?

Import Libraries. Create or import data. Plot a graph on data using matplotlib. Change the font size of tick labels….These three methods are:

  1. fontsize in plt. xticks/plt. yticks()
  2. fontsize in ax. set_yticklabels/ax. set_xticklabels()
  3. labelsize in ax. tick_params()

How do you set Xticks in Seaborn Boxplot?

Rotate xtick labels in Seaborn boxplot using Matplotlib

  1. Create data points for xticks.
  2. Draw a boxplot using boxplot() method that returns the axis.
  3. Now, set the xticks using set_xticks() method, pass xticks.
  4. Set xticklabels and pass a list of labels and rotate them by passing rotation=45, using set_xticklabels() method.

What is difference between axes and axis in Matplotlib?

Axis is the axis of the plot, the thing that gets ticks and tick labels. The axes is the area your plot appears in.

How do I set the range of a axis in Matplotlib?

axis () Method to Set Limits of Axes in Matplotlib To set the limits for X-axis only, We could use xlim () and set_xlim () methods. Similarly to set the limits for Y-axis, we could use ylim () and set_ylim () methods. We can also use axis () method which can control the range of both axes.

How do I set limits in Matplotlib?

Matplotlib automatically arrives at the minimum and maximum values of variables to be displayed along x, y (and z axis in case of 3D plot) axes of a plot. However, it is possible to set the limits explicitly by using set_xlim () and set_ylim () functions.

How to set limits for x-axis and y-axis in Pyplot?

We can also use axis () method which can control the range of both axes. matplotlib.pyplot.xlim () and matplotlib.pyplot.ylim () can be used to set or get limits for X-axis and Y-axis respectively.

How to set the XLIM of a plot in Matplotlib?

If you just use pyplot for a simple plot, you can try this function: import matplotlib.pyplot as plt… plt.xlim (10, 100) If you want to set specific axes, you can try this method: import matplotlib.pyplot as plt… ax = plt.gca () ax.set_xlim (10, 100)
