What repairs can fix the P0462 code?
- Sealing the fuel tank or replacing it.
- Replacing the entire fuel level sensor or the malfunctioning element.
- Replacing broken or frayed wires.
What is a fuel level sensor A circuit low input?
Diagnostic trouble code (DTC) P0462 stands for “Fuel Level Sensor “A” Circuit Low .” The PCM stores this code when it detects an irrational input signal from the fuel level sensor (FLS). The float bobs up and down depending on the level of fuel inside the tank.
What is a fuel level sensor?
A fuel level sensor (FLS) is used in all automobiles to indicate fuel level. Various methods are used to measure fuel level such as resistive film, discrete resistors, capacitive, and ultrasonic. These sensors are mechanically connected to a float which moves up or down depending on the fuel level.
How much does it cost to replace fuel level sensor?
How Much Does a Fuel Level Sensor Replacement Cost? The cost of a fuel level sensor replacement can vary depending on different factors. Parts alone can cost anywhere between $20 and $270, according to your vehicle’s year, make, and model.
How much does it cost to fix a fuel level sensor?
What does Engine code P2068 mean?
What the P2068 code means. This code indicates the fuel level sensor is indicating a higher than expected voltage. The higher the value the more fuel is in the tank.
What does engine code P2068 mean?
Can you drive with a bad fuel level sensor?
When the fuel sending unit has an issue it can cause the vehicle to experience issues with the fuel gauge, which can put the vehicle at risk of running out of fuel. Usually a bad or failing fuel gauge sender will produce a few symptoms that can alert the driver of a potential issue.
How do I reset my Ford fuel gauge?
How to Reset a Fuel Gauge
- Turn the ignition switch to the “On” position.
- Press the “Odo/Trip” button until the odometer is put into “ODO” mode.
- Turn off the ignition.
- Press and hold the “Odo/Trip” button.
- Release the “Odo/Trip” button.
How much does it cost to diagnose a p0462 Ford code?
The cost to diagnose the P0462 FORD code is 1.0 hour of labor. The auto repair’s diagnosis time and labor rates vary by location, vehicle’s make and model, and even your engine type. Most auto repair shops charge between $75 and $150 per hour.
What does the DTC code p0462 mean?
What Does the P0462 Code Mean? Diagnostic trouble code (DTC) P0462 stands for “Fuel Level Sensor “A” Circuit Low .” The PCM stores this code when it detects an irrational input signal from the fuel level sensor (FLS).
What does the code p0463 mean on a fuel level sensor?
P0463 Fuel Level Sensor Circuit High Input P0464 Fuel Level Sensor Circuit Intermittent Severity usually not as severe. Because it is an electrical failure, the PCM can compensate for it. The compensation usually means that the fuel gauge reads Empty or Full all the time.

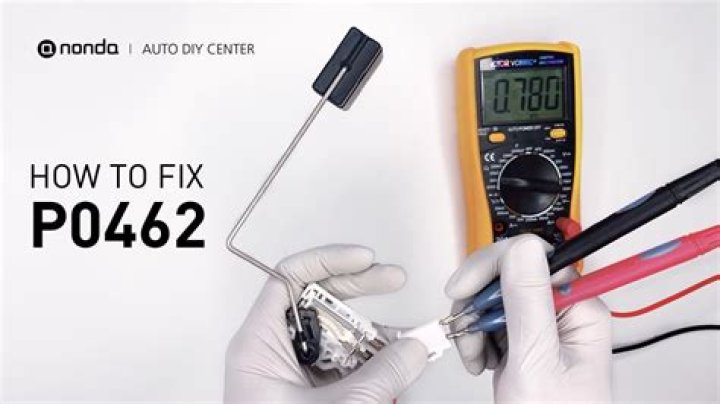

How do you test a p0462 code on a FLS sensor?
If the P0462 code does return, we will need to test the FLS sensor and its associated circuits. With the Key Off, disconnect the electrical connector at the FLS sensor. Connect a Digital Voltmeter (DVOM) black lead to the ground or low reference terminal at the FLS sensor wiring harness connector.
