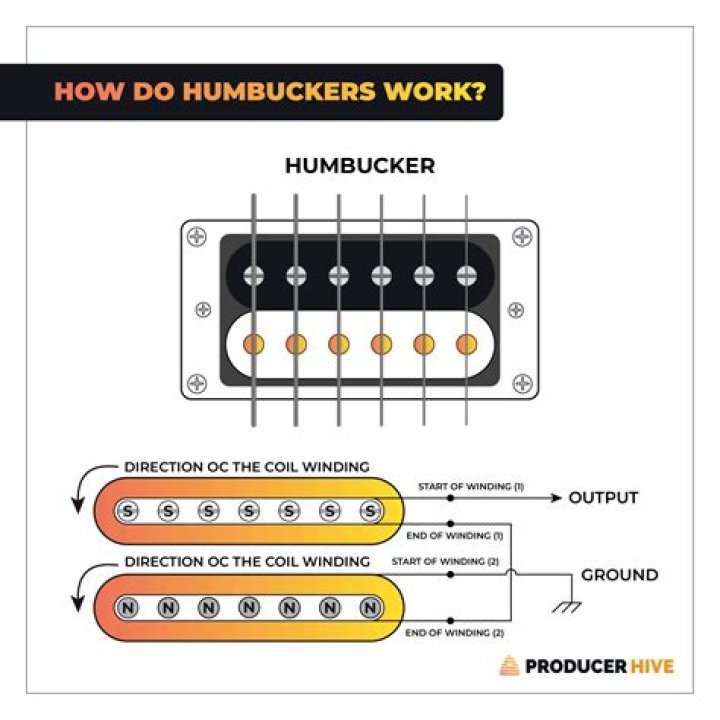

How do I know if my humbuckers are out of phase?

For instance: if both pickups have the same coil direction but different magnetic polarities, your pickups will be out of phase. Out of phase pickups sound thin and weak (listen to the sound clip above).

Can humbuckers be out of phase?

Humbucking pickups that use two coils can be electrically out of phase if incorrectly hooked up. Normally both coils are wound in the same direction.

What does an out of phase humbucker sound like?

Thus, having the neck and bridge pickups wired out-of-phase is the best choice for this type of sound. So, for the uninitiated, what does it sound like? Basically, it’s a thin, inside-out, squawky kind of sound, and the two pickups that normally sound full and rich turn into a thin and shrill sounding couple.

Can a humbucker be out of phase with a single coil?

If the two pickups have the same wind but different polarity, or the same polarity but different wind, they will be out of phase with each other. The most common reason for two single coils to be out of phase is that one of them is wired backwards.

What is phase switching on guitar?

This phase switch reverses the neck pickup phase (ground becomes hot, and hot becomes ground), so frequencies in common with the bridge pickup tend to cancel. This tonal change requires no active electronics or battery, yet gives a distinctive, scooped sound that works well with both clean and distorted amp settings.

Can pickups be in series and out of phase?

Pickups wired SERIES/out of phase still require the current to flow through both coils, but (typically) the positive leads are tied together, and one coil’s negative lead goes to hot, and the other’s is then routed to ground.

What does the phase switch do?

Phase switches are usually marketed as a feedback-controlling device, but they accomplish more than just that. Phase determines at what point in time a sound wave has its peak or trough. Amplification systems, effect units, or any electronic audio device may or may not invert the phase in of the signal coming in.

What does a phase switch do on an acoustic guitar?

The phase switch will reverse the phase of the signal which can cancel low frequency feedback (when acoustical wavers are out of phase they cancel each other out.)

What is out of phase on Les Paul?

Out of phase, simply put, means that the polarity of one of the pickups is flipped.
