Check if the load cell cable has any obvious signs of damage. Any cuts, crimps, excessive aberration or exposed wires is a sign of damage. Check load cell element for any dents, deformation, cracks, rippling of metal, corrosion, and significant wear in the area of loading.
Can load cells go bad?
But all too frequently, load cells fail. They undergo events that may reduce their functionality because they are easily the most vulnerable part of a weighing or scale system.
How long do load cells last?
A quality load cell should last a long time. I’ve seen load cells last over 50 years. For long-term accuracy and quality, establish a preventative maintenance schedule and recalibrate the load cells based on the manufacturer’s suggested timeframe.
Why load cell is not working?
Unbalanced Zero Connection: When your load cell is not in use, it should be resting at zero. A number of forces can cause it to be stuck above or below this default point. Wire Misconnections: This problem is usually simple to spot, as any loose wires can prevent the right signals from reaching the load cell.
Is load cell repairable?
50kgf to 20ton or above also can be repaired. Weigh bridge load cell – double ended shear beam. – like model 65058, Weigh bridge load cell – cup and ball type.
What happens if you overload a load cell?
If the load cell has been overloaded, mechanical damage has been done that is not repairable. Overloading causes permanent deformation within the flexural element and gauges, which destroys the carefully balanced processing that results in performance to the manufacturer’s specifications.
What can damage a load cell?
Load cells might be damaged because of (shock) overloading, lightning strikes or heavy electrical surges in general, chemical or moisture ingress, mishandling (dropping, lifting on cable, etc.), vibration or internal component malfunction.
How do you test a load cell scale?
Set the multimeter in DC millivolts and connect the output wires of the load cell to the multimeter. Supply a voltage of 5V or 9V DC at the excitation leads and place a test weight on the load cell. The multimeter will register a change in voltage measured across the load cell’s output.
Are load cells reliable?
Strain gauge load cells offer accuracies from within 0.03% to 0.25% full scale and are suitable for almost all industrial applications. In applications not requiring great accuracy, such as in bulk material handling and truck weighing mechanical platform scales are still widely used.
How do you protect a load cell?
Transit protection devices Where possible, load cells should only be mounted at the final installation site of the system. In this case, a placeholder should be inserted in the system in place of the load cell. Dummies with the same external dimension of the load cell have been proven to be suitable.
What is a load cell specialist?
We are specialists in the design and manufacture of custom load cells. We have a line of load cells and load pins designed specifically for the steel industry where our reputation for reliability and accuracy is unmatched. Measurement Specialists repairs any load cell or load pin, especially useful in the steel industry.
Where are Your Load cells made?
All processes and steps -including the entire design and manufacture of our load cells – are expressly conducted in the USA. National Scale Technology employs on site engineers that are qualified and able to assist in virtually any weighing application regardless of complexity.
What are the common problems with the performance of load cells?
Proper load cell performance is also dependent upon the electrical “system.” The following items are common problem areas: Loose or dirty electrical connections, or incorrect connection of color coded wires. Failure to make use of remote sensing of excitation voltage on long cables.
What do I need to know before using a load cell?

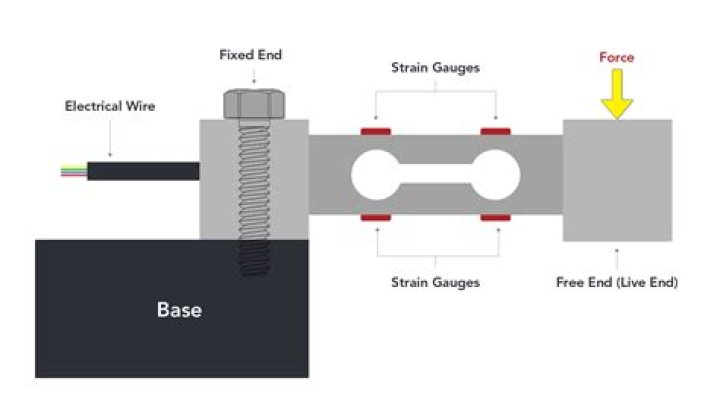

Torque of all mounting hardware. Load cell orientation: “Dead” end on mechanical reference or load forcing source, “live” end connected to the load to be measured. (Dead end is the end closest mechanically to the cable exit or connector.) Proper hardware (thread sizes, jam nuts, swivels, etc) as required to connect the load to the load cell.
