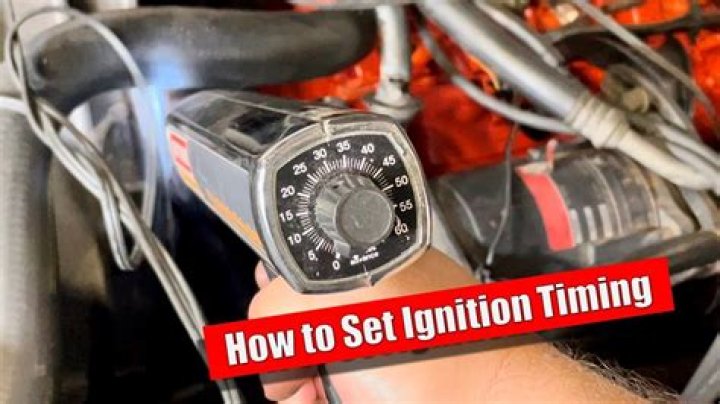

How do I set the timing on my electronic ignition?

To adjust your timing, all you need to do is turn the distributor housing one direction or the other, depending on whether or not you want to advance or move back the timing. If the rotor turns clockwise, you’ll advance the timing by rotating the distributor counterclockwise, and vice versa.

What RPM should mechanical advance start?

A typical mechanical-advance curve might start advancing at 1,500 rpm and achieve full advance by 2,600 rpm.

How much ignition timing is too much?

It’s generally acknowledged that peak cylinder pressure needs to occur at roughly 15-18 degrees After Top Dead Center in order to maximize leverage on the crankshaft. If the spark timing is initiated too early, the cylinder may experience detonation and potentially cause damage.

How do you calculate total timing?

Total timing, which refers to the maximum amount of ignition timing applied to the engine, is easy enough to calculate. You get the number by adding initial timing to mechanical advance.

What is normal timing advance?

Most engines will idle happily with an ignition advance of 15 – 32 degrees. This is a very wide range – some engines will certainly not be happy at 32 degrees and others won’t be at 15 degrees!

What is the crank angle for ignition timing?

The ignition timing used in the standard case was 692° crank angle, which is 28 °btdc. It was decided to investigate the effect of both advancing (i.e. taking the spark initiation farther btdc) and retarding the timing, (i.e. taking the spark initiation closer to tdc).

Does advancing the ignition timing affect the spark initiation?

It was decided to investigate the effect of both advancing (i.e. taking the spark initiation farther btdc) and retarding the timing, (i.e. taking the spark initiation closer to tdc). Three cases were examined, as shown in Table 16.5; 687° means the timing was advanced by 5° and 695° and 702° means that the ignition was retarded in two 5° steps.

What is the correct ignition timing for a 44 Magneto?

Less ignition timing is needed for higher power ignition systems. For a blown alcohol engine with an old 2 primary ampere magneto, 38 degrees of timing was common. With a higher power magneto near 4 primary amperes, 36 degrees of timing is common. With a very powerful 44 primary ampere magneto, only 22 degrees of timing is common.

What happens when you change the ignition timing on a car?

Changing the timing value up or down changes the engine speed up or down for the optimum ignition timing. The engine speed operating range affects where the timing is the best. Increasing the timing advance raises the high-end power, reducing the low-end.
