The main steps to set up multi-texturing are:

  1. Assign multiple textures to an object’s material.
  2. Create UV sets with different layouts.
  3. Link each UV set to a given texture using the Relationship Editor.

How do I change my UV set in Maya?

Switch between UV sets

  1. In the UV Editor, select UV Sets > (UVsetName).
  2. In the scene view, right-click on a mesh and choose UV Sets > (UVsetName).
  3. In the main menu, select UV > Set Current UV Set. In the window, type the name of the UV set you want.

How do I copy UV objects into Maya?

Copy UVs and color attributes between polygons

  1. Select the polygon face whose attributes you want to copy and choose Mesh > Clipboard Actions > Copy Attributes > .
  2. In the Copy Clipboard Options window, set the attributes you want to copy (UV, Shader, and Color) and click Apply and Close.

How do you fix UV distortion in Maya?

Display UV distortions

  1. Select a UV mesh.
  2. (Optional) In the UV Editor, select View > UV Distortion > . In the UV Distortion Options window that appears, select an Evaluation mode.
  3. In the UV Editor View options bar, click the distortion shader icon .
  4. Do one of the following to turn off the distortion shader:

Where is UV mapping in Maya?

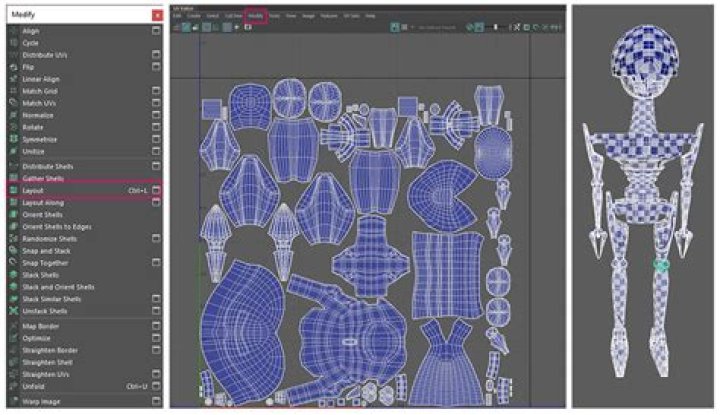

Maya provides pretty good tools for moving around UVs. To use them, open Windows > Modeling Editors > UV Editor. UV Editor. Go to View > Frame All in the editor if you don’t see the grid view I have above.

What is seamless texture in Maya?

A seamless repeating texture is one where you cannot see the border of each tile because the images match continuously at each tile edge (like aligning a wallpaper pattern at the edges of the paper). You can create seamless repeating textures in Paint Effects using the wrap feature.

How do I create UV texture coordinates in Maya?

In Maya, UV texture coordinates (UVs) can be created for polygon surface meshes using the following UV mapping techniques: Each UV mapping technique produces UV texture coordinates for the surface mesh by projecting them onto the surface mesh based on its inherent projection method.

What is a uvuv set?

UV Sets allow you to create multiple arrangements of UV texture coordinates for a single surface. For more information, see UV sets. This section contains information on how to create and edit UV sets.

How do I create a UV set for a body?

Select the first group of faces, in this case the body, and choose “Copy UVs to UV set > Copy to New UV Set” option under the Polygons menu in the UV texture editor; call it Body. Now, you will notice a new UV set has been created which can be seen under the UV Sets menu in the UV texture editor.

Can I map Uvs onto a model?

However, the initial mapping produced via the above UV mapping techniques does not usually produce the final UV arrangement that is required for a texture. As a result, you will often need to perform further editing operations on the UVs using the UV Editor. It is best to map UVs onto a model only when the it is complete.
