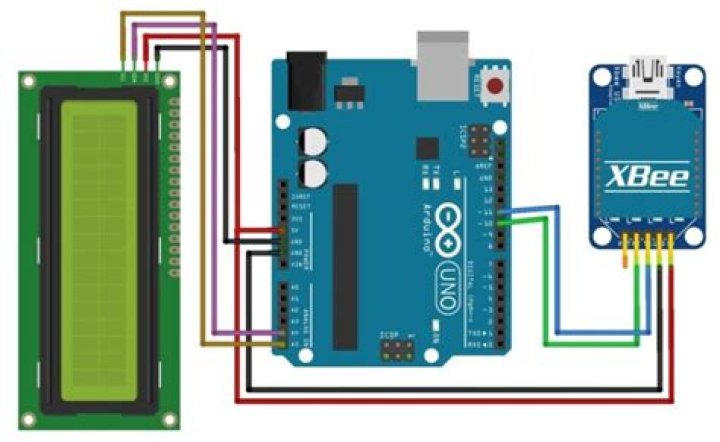

Just hook up the XBee module to the Explorer board and plug it with the laptop using USB cable. If you don’t have any converter or explorer board, then an Arduino board can be used as a USB to serial device which can easily communicate with the XBee and laptop.
How do I program my XBee?
Follow the steps below:
- Plug your XBee into your XBee Explorer, and plug the Explorer into your computer.
- Open XCTU.
- Hit Test/Query to make sure you can communicate with your XBee WiFi.
- Click over to the “Modem Configuration” tab.
- Select “Active Scan” near the top of the scrolling window.
What is XBee Arduino?
Overview. The Xbee shield allows an Arduino board to communicate wirelessly using Zigbee. It is based on the Xbee module from MaxStream. The module can communicate up to 100 feet indoors or 300 feet outdoors (with line-of-sight). The shields breaks out each of the Xbee’s pins to a through-hole solder pad.
Does Arduino support ZigBee?
The Arduino Wireless Shield allows your Arduino board to communicate wirelessly using ZigBee. Digi International continue to support both ZigBee and Znet 2.5, so you are free to use either on the Series 2 radios. Remember that only radios with the same type of firmware can communicate with each other.
What is XBee used for?
XBee is a module produced by Digi International mainly use as a radio communication transceiver and receiver. It is mesh communication protocols that sits on top of IEEE 802.15. 4 ZigBee standard. XBee supports peer-to-peer as well as point to multi-point network communications wirelessly with the speed of 250 kbits/s.
What is XCTU software?
XCTU is a free multi-platform application designed to enable developers to interact with Digi RF modules through a simple-to-use graphical interface. It includes new tools that make it easy to set-up, configure and test XBee® RF modules.
What is the difference between XBee and Zigbee?
XBee is a family of radio modules and is a registered trademark of Digi International. Zigbee is a wireless communications protocol and a registered trademark of the Zigbee Alliance. Many people confuse these two names because both are involved in radio networking and have “Bee” in their branding.
Is XBee same as Zigbee?
XBee is a family of radio modules and is a registered trademark of Digi International. Zigbee is a wireless communications protocol and a registered trademark of the Zigbee Alliance. XBee is a brand name that refers to a family of devices from Digi International.
What is XBee module used for?
XBee – According to Digi “XBee modules are embedded solutions providing wireless end-point connectivity to devices. These modules use the IEEE 802.15. 4 networking protocol for fast point-to-multipoint or peer-to-peer networking.
What is CTU?
What is the Arduino code?
The Arduino Integrated Development Environment (IDE) is the main text editing program used for programming the Arduino. It is where you’ll be typing up your code before uploading it to the board you want to program. Arduino code is referred to as sketches.
What are XBee modules?
XBee – According to Digi “XBee modules are embedded solutions providing wireless end-point connectivity to devices. These modules use the IEEE 802.15.4 networking protocol for fast point-to-multipoint or peer-to-peer networking. Zigbee – An alliance and a standard of cost and energy efficient mesh networks.
What is an Arduino program?
Arduino refers to an open-source electronics platform or board and the software used to program it. Arduino is designed to make electronics more accessible to artists, designers, hobbyists and ayone interested in creating interactive objects or environments.
What is Arduino development board?
In a nutshell, an Arduino is an open hardware development board that can be used by tinkerers, hobbyists, and makers to design and build devices that interact with the real world.
