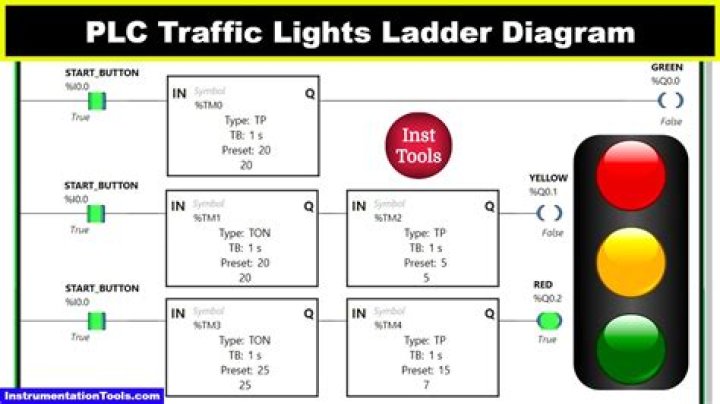

The PLC checks the status of the sensors. The system resolution is dependent on the output provided by the sensors, then PLC checks the priorities and then provide output signal to the traffic light poles for ON or OFF the red, yellow or green lights and ON time is dependent on the specific priorities.
How does PLC operate?
PLC Operation The programmable logic controller will process the given information (inputs), execute the instruction from the program, and deliver the results (outputs) based on the provided information and written logic. PLCs operate in a repeating loop once the user determines the inputs and outputs.
How do you make a traffic light circuit?
Traffic Light Project
- Step 1: Take All Components As Shown Below.
- Step 2: Fold Pins of Transistors Like This.
- Step 3: Connect Red LED to Transistor.
- Step 4: Connect Green LED to Transistor.
- Step 5: Connect Yellow LED to Transistor.
- Step 6: Connect Emmiter of Transistors.
- Step 7: Connect 1K Resistors.
What is a PLC timer?
PLC timers are internal PLC instructions that can be used to delay input and output signals in the PLC program. These timers operate like relay timers but you cannot hold a PLC timer in your hand and they do not need to be connected to wires to operate.
What are the different types of PLC timers?
There are three types of PLC timers:
- ON delay timer (TON)
- OFF delay timer (TOFF)
- Retentive Timer (RTO)
What does a PLC control?
A PROGRAMMABLE LOGIC CONTROLLER (PLC) is an industrial computer control system that continuously monitors the state of input devices and makes decisions based upon a custom program to control the state of output devices. That is, you can mix and match the types of Input and Output devices to best suit your application.
What operating system can a PLC use?
PLCs require programming device which is used to develop and later download the created program into the memory of the controller. Modern PLCs generally contain a real-time operating system, such as OS-9 or VxWorks.
How to control heavy traffic jams using programmable logic control (PLC)?
This PLC program gives the solution to control heavy traffic jams using programmable logic control. They are so many ways to write a program for traffic light control ex: sequencer output method but in this normal input, outputs and timers are used. Timers are used to give time delay for output to turn ON and OFF.
How to write a program for traffic light control?
They are so many ways to write a program for traffic light control ex: sequencer output method but in this normal input, outputs and timers are used. Timers are used to give time delay for output to turn ON and OFF. Reset coil is used at the end to run the program continuously. Comparator blocks are used to reduce the number of timers used.
How to control city traffic using programmable logic control?
We most often come across four way traffic jam in our city. This PLC ladder logic gives the solution to control city traffic using programmable logic control. They are so many ways to write a program for traffic light control ex: sequencer output method but in this normal input, outputs and timers are used.
How to turn on/off the output of the timer?
Starting the timer to turn on output East Green, North-South-West is in red. Parallel circuits are added to turn ON/OFF the output in up next sequence. Turning on North Yellow and East Yellow. Parallel circuits are added to turn ON/OFF the output in up next sequence. Turn on East Red and North Green.
