Create a Floor

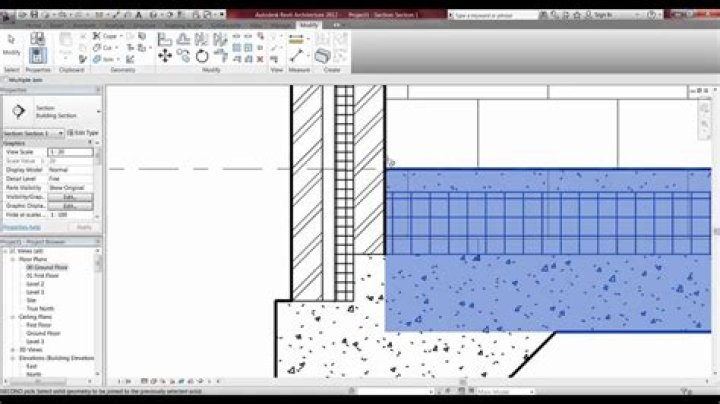

  1. Click Architecture tab Build panel Floor drop-down (Floor: Architectural). Where is it?
  2. Draw the floor boundaries, using one of the following methods: Pick walls: By default, Pick Walls is active.
  3. On the Options Bar, for Offset, specify an offset for the floor edges.
  4. Click Finish Edit Mode.

How do you create a concrete floor in Revit?

Create a foundation slab by sketching or selecting the walls of the first level of the model.

  1. Click Structure tab Foundation panel (Slab)
  2. Specify a foundation slab type from the Type Selector.
  3. Click Modify | Create Floor Boundary tab Draw panel Boundary Line and then click (Pick Walls) to select the walls in your model.

How do you add a mezzanine in Revit?

Create a Floor on the Lower Level In the Project Browser, under Floor Plans, double-click Mezzanine. Click Architecture tab Build panel (Floor). Click Modify | Create Floor Boundary tab Draw panel (Pick Walls). Position the cursor over one of the 3 walls as shown in the image, and click to place a boundary line.

How do I create a multi level staircase in Revit?

Click Architecture tab Circulation panel (Stair), and create the desired stair component. Click Modify | Create Stair tab Edit panel (Multistory: Select Levels). If prompted, open an elevation view or a section view. Select levels to extend the stair.

How do you make a footing in Revit?

Place footings beneath structural columns or at grid intersections.

  1. Click Structure tab Foundation panel (Isolated).
  2. On the Properties palette, select an isolated foundation type from the Type Selector.
  3. To place a single footing click in the drawing area in either a plan or 3D view.

How to create stairs in Revit?

Open a plan or 3D view.

  • On the ribbon,click Architecture tab Circulation panel (Stair).
  • Optional: To specify the type of railing to be created for the stair run,click Modify|Create Stair tab Tools panel (Railing).
  • To sketch the stair run,with Run selected on the Modify|Create Stair tab Components panel,click (Create Sketch).

    • How to create levels in Revit?

    Open the project you want to add levels to

  • Click the Level button on the ribbon
  • Point the cursor to the drawing area and click. When you place a cursor on a level line to create a new level,a temporary vertical dimension will be
  • Move the cursor horizontally to draw level lines.
  • When the level line is the correct length,Click it.

    • How does AutoCAD work with Revit?

    The main difference is that AutoCAD is primarily a drafting tool to create basic geometry that represents real life, while Revit is used to create geometry that’s equipped with real-life information, hence the term building information modeling, or BIM.
