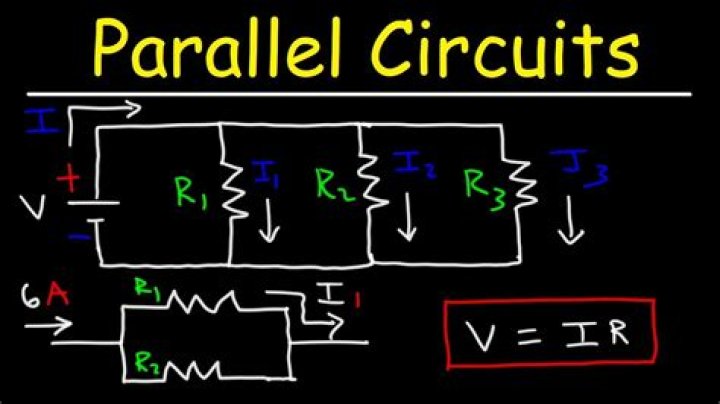

How do you add current in a parallel circuit?

Total current in a parallel circuit is the sum of the individual branch currents. This relationship in a parallel circuit is expressed as: IT = I1 + I2 + I3… Whenever more resistances are connected in parallel, they have the effect of reducing the overall circuit resistance.

Is current added in parallel circuit?

A Parallel circuit has certain characteristics and basic rules: Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source.

How do you add up currents?

What is the formula for a total current? IT = VT/RT or I total = V total / R total or the total current = the total voltage / the total resistance.

How do you calculate amps in a circuit?

Divide the watts of a given electrical item by the total number of volts available from the electric outlet to calculate amperage draw. The amount of current flowing through the wire is measured in amperes, or amps.

How is current divided in a parallel circuit?

In a parallel circuit, each device is placed in its own separate branch. When resistors are connected in parallel, the potential difference across them is equal and current gets divided in inverse ratio of their resistance. Because i = V/R where, i is the current, V is the voltage and R is the resistance.

Is there more current in series or parallel?

When resistors are connected in parallel, more current flows from the source than would flow for any of them individually, so the total resistance is lower. A circuit with parallel connections has a smaller total resistance than the resistors connected in series.

How do you calculate Amps in A parallel circuit?

Identify the voltage of the system. Add the voltages together if two power sources in series are being used. Divide the voltage by Rtotal to determine the final value of current after it passes through the parallel resistors. This is Ohm’s law, which can be written as I = V/Rtotal.

Do Amps add up in parallel?

When loads or sources are wired in parallel, currents are additive and voltage is equal through all parts of the circuit. To increase the amperage of a system, the voltage sources must be wired in parallel. Notice that parallel wiring increases the current produced and does not increase voltage.
