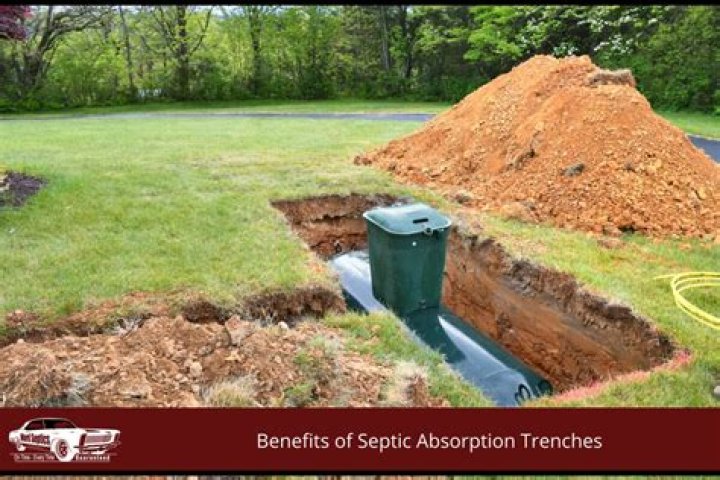

Absorption trenches are excavated and the bottom filled with aggregate or crushed rock. Either perforated piping, self-supporting arch trenching or box trenching is placed in the trench. The piping is layered over with geotextile fabric, hay or newspaper, several centimetres of sand and then soil.
How big should an absorption trench be?
Trenches are usually 500 to 700 millimetres deep and up to around 600 millimetres wide. Beds are usually no deeper than 600 millimetres, but up to several metres wide and contain a number of distribution pipes or arches.
How deep are septic fingers buried?
Septic drainfield trench depth specification: A typical septic drainfield trench is 18 to 30 inches in depth, with a maximum soil cover over the disposal field of 36″; or per the USDA, 2 feet to 5 feet in depth.
How deep should a trench be for a septic system?
around 500 to 700 mm
Septic trenches are often around 500 to 700 mm deep and around 600 mm wide, however, check with your local council for the specific specifications in your area.
What is the purpose of geotextile fabric on soakage trench?
This woven plastic cloth allows liquid to pass through the trench, whilst preventing the ingress of soil from the outside. Highly durable, Geotextile will not rot or deteriorate over time.
What type of pipe is used in a drain field?
Corrugated pipe
Corrugated pipe is typically used for drain fields. Septic systems use drain fields to treat the septic tank effluent for the removal of impurities and contaminants. The field is made up of trenches typically containing washed “drainrock” or gravel.
How long is a septic trench?
Typical absorption trenches are 600mm or 1200mm wide and up to 15m in length.
Can you put a septic system in clay soil?
The way the lagoon is designed the effluent leaves the home to the septic tank where it gets pre-treated, then passes through a filter to the bottom of the lagoon. If your ground has high clay soils or massive clay, the lagoon is perfect for those types of soil.
Can a leach field be too deep?
Depth. Place the pipes in the leach field a minimum of 6 inches and most likely between 18 to 36 inches deep according to the Clemson Cooperative Extension. Each leach field requires an individual design as soil and water tables vary from state to state and within states.
What is an absorption trench?
Absorption trenches or beds are used to release effluent below the surface through narrow and deep trenches, or wide and shallow beds. Effluent flows by gravity or is pumped along the length of the trench or bed through distribution pipes, and is then filtered through gravel or sand to the underlying soil.
How do you fill in a trench in the ground?
Fill the trench to within about 6 inches of the top of the trench with about 2 inch aggregate, put tar paper over the aggregate and cover it with dirt. The tar paper is to stop the dirt falling down into the aggregate.
What is soffsoakage trench?
soakage trench, or infiltration trench, is a below ground, shallow, linear trench filled with gravel under an underground perforated pipe.
How long is a sewerage trench?
They are about 1500mm long x 600 to 700 wide and you lap one over the other by one rib and put this in the bottom of the trench hollow side down. Cut a hole in the side of it and run your sewerage pipe into it at one end.
What is the minimum percolation rate for a soakage system?
The guideline for the minimum percolation rate is 0.5 litres/m2/min. 3.6 Minimum Percolation Rate for Soil Areas. The guideline for the minimum percolation rate is 0.5 litres/m2/min. If percolation rates are near or below this value, it will be difficult to obtain building consents for soakage systems.
