The Hamming Code is simply the use of extra parity bits to allow the identification of an error….Determining the position of redundant bits –
- The number of data bits = 7.
- The number of redundant bits = 4.
- The total number of bits = 11.
- The redundant bits are placed at positions corresponding to power of 2- 1, 2, 4, and 8.
What is the size of hamming code for 32 bit data word?
The first number is the total number of bits, and the second is the number of data bits. You can take Hamming(63, 57) and use only 32 of the 57 data bits. You will have 32 data bits + 6 parity bits = 38 bits.
Can hamming code detect 3 bit errors?
Note that extended binary Hamming codes are 3-error-detecting. All single-bit errors are correctly decoded, while double-bit errors are detected but not correctable.
Can hamming code detect 2 bit errors?
Hamming codes can detect up to two-bit errors or correct one-bit errors without detection of uncorrected errors. By contrast, the simple parity code cannot correct errors, andcan detect only an odd number of bits in error.
What is the Hamming code for 1100?
1100011
Solution
| Message (M) | Codeword (C) |
|---|---|
| 1010 | 1010101 |
| 1011 | 1011010 |
| 1100 | 1100011 |
| 1101 | 1101100 |

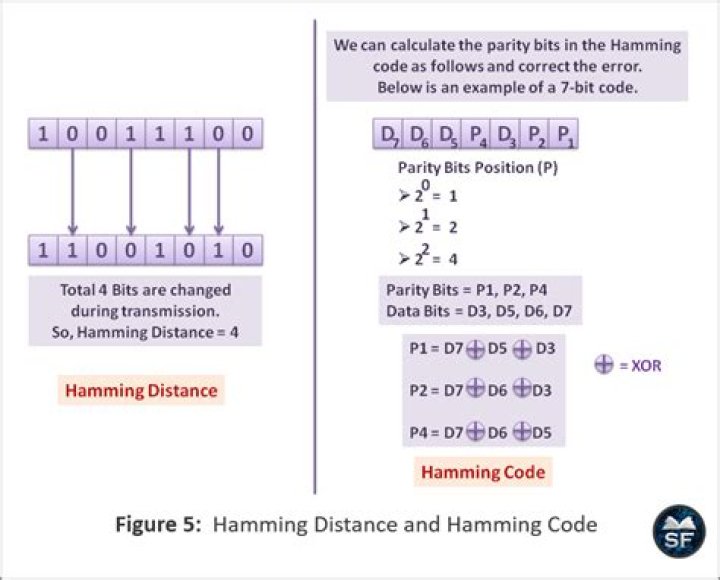

How is Hamming code calculated step by step?
Calculating the Hamming Code
- Mark all bit positions that are powers of two as parity bits.
- All other bit positions are for the data to be encoded.
- Each parity bit calculates the parity for some of the bits in the code word.
- Set a parity bit to 1 if the total number of ones in the positions it checks is odd.
How many ECC bits do I need?
In this configuration the Hamming code requires 3 bytes of ECC information for each 512-bytes sector, or 12 bytes (96 bits) of ECC encoding information is required per 2 kB page.
Is Hamming code systematic?
Hamming codes can be implemented in systematic or non-systematic form. A systematic linear block code can be converted to non-systematic form by elementary matrix transformations.
What is the message length k of a Hamming 7 4 code?
7. What is the message length ‘k’ of a Hamming(7,4) code? Explanation: Hamming codes are a class of binary linear codes, hence r>=2. For a hamming(7,4) code, the message length ‘k’ is 2r-r-1 where r is the parity bit.
How many bits does a Hamming code correct?
In coding theory, Hamming(7,4) is a linear error-correcting code that encodes four bits of data into seven bits by adding three parity bits.
What is the Hamming code?
Hamming code is a block code that is capable of detecting up to two simultaneous bit errors and correcting single-bit errors. It was developed by R.W. Hamming for error correction.
What is the procedure for single error correction by Hamming code?
The procedure for single error correction by Hamming Code includes two parts, encoding at the sender’s end and decoding at receiver’s end. The procedure used by the sender to encode the message encompasses the following steps − Step 1 − Calculation of the number of redundant bits. Step 2 − Positioning the redundant bits.
How do you know if a bit has an error?
If it is 0, there is no error. Otherwise, the decimal value gives the bit position which has error. For example, if c1c2c3c4 = 1001, it implies that the data bit at position 9, decimal equivalent of 1001, has error. The bit is flipped (converted from 0 to 1 or vice versa) to get the correct message.
