Capacity of open delta system = 0.577 x rating of closed delta system=0.577 x 30 kVA= 17.32 kVA. Load on each transformer is 10 kVA (Voltage across each transformer is 1000 V, current flowing through each transformer is 10 A).
What is open delta transformer?

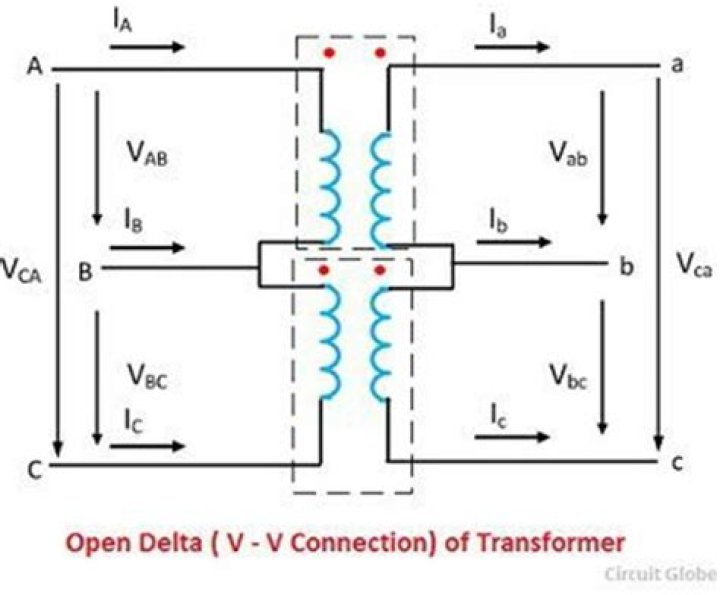

An open delta transformer is a three phase transformer that only has two primary and secondary windings, with one side of the delta phase diagram “open”. More common is critical loads being wired with three single phase transformers in a banked configuration.
How many transformers are needed to make an open delta connection?
Two transformers are needed to make an open delta connection.
What is the use of open delta connection?
Open Delta Connection is a method of transformer connection used to transform three-phase power using two single-phase transformers.
Which can be also called as 00 1800 Connection?
Which can be also called as 00 /1800 connection? Explanation: Star connection is formed on each side by connecting together phase winding terminals. Explanation: Delta/delta connection is also called as 00-connection as seen from the phasor diagram that primary and secondary line voltages are in phase with each other.
Is 208 3-phase delta or wye?
International Electrical Distribution Systems
| Description | L–N Vac | WattNode Models (Wye or Delta–Voltage) |
|---|---|---|
| 3-Phase, 3-Wire 208 V Delta (No neutral) | – | 3D-240 |
| 3-Phase, 3-Wire 230 V Delta (No neutral) | – | 3D-240 |
| 3-Phase, 3-Wire 400 V Delta (No neutral) | – | 3D-400 |
| 3-Phase, 3-Wire 480 V Delta (No neutral) | – | 3D-480 |
What does open delta mean?
Definition of open-delta connection : a usually temporary or emergency connection of a three-phase electrical circuit in which one of the three transformers is omitted and its load carried by the two transformers. — called also V-connection.
How does open delta PT work?
The open-delta connection uses two single-phase PTs. They, too, provide 3-phase transformation, but the resultant secondary voltage magnitude is about 1/3 that of the broken-delta arrangement. Furthermore, secondary-circuit failures that could negateproper fault detection are virtually ignored!
How many transformers are required to make an open delta connection for a 100 kVA three-phase installation?
Two transformers rated at 100 kVA each are connected in an open-delta connection.
How many transformers are needed to make an open delta connection quizlet?
An open delta transformer is assembled from two 50 kVA transformers. The output power of the open delta is _____. A delta-delta transformer has a primary voltage of 7200 V and a secondary voltage of 360 V.
Do open circuit test in a transformer is used to measure?
The open-circuit test, or no-load test, is one of the methods used in electrical engineering to determine the no-load impedance in the excitation branch of a transformer.
What voltage is open Delta?
Two single-phase transformers rated for 10MVA 13.8kV/4,160V are connected in open delta to form a three phase transformer.
How do you calculate open delta capacity of a transformer?
Open Delta Transformer Calculations. Let us start with the relevant equations: Capacity of open delta system = x rating of one transformer = x 10 kVA= 17.32 kVA. OR. Capacity of open delta system = 0.577 x rating of closed delta system=0.577 x 30 kVA= 17.32 kVA. (The total load carried by open delta system is 57.7% of closed delta system)
What is the difference between open delta and closed delta transformers?
The efficiency of this (open delta) system will be less as compared to the closed delta system. Because, in open delta system, both the transformers are operating at rated capacity (i.e. 5 KVA), so their losses will be as per full load losses, but the output is reduced (output is 8.66 KVA instead of 10 KVA).
What is the capacity of open delta system?
Capacity of open delta system = √3 x rating of one transformer = √3 x 5 KVA= 8.66 KVA.
How many single phase transformers are used in a delta transformer?
Open Delta Transformer uses two single phase transformers to provide three-phase supply. A balanced three-phase voltage supply can be obtained by connecting the transformers in open delta or vee connection.
