For a street engine, multiplying your bore size by 0.004in will give you the top ring gap you are looking for. For high performance engines, the multiplier changes to add more clearance, but the math stays the same: Modified or Nitrous Oxide – 0.005in x 4.00in bore = 0.020 inch ring gap.
What happens if the piston ring gap is too wide?
Piston rings will expand when warm and you will set that end gap to take into account the thermal expansion and aim for best sealing once that engine is warm. Now, if the gap is too big, the engine will have too much crankcase pressure, have a ton of blow-by, burn oil, and lack proper cylinder sealant.
What happens if ring gap is too small?
If the gap is too small, the ends of the ring may collide which can lead to the ring breaking, scoring the bore, and eventually lead to complete breakdown. However, piston rings can be made from a wide variety of irons and steels with very different coefficients of expansion.
What is piston ring axial clearance?
Axial clearance is the vertical clearance left in the groove above the ring after it has been installed. Radial Back Clearance: Ring groove space behind ring when the ring face is flush with the piston ring land. A back clearance of 0.008-0.012 inch is typical for racing and high-performance pistons.
What should the piston ring gap be?

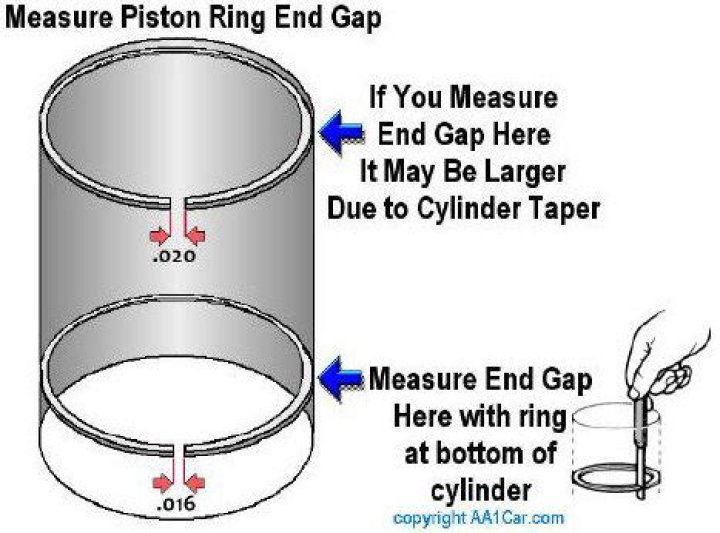

Most piston ring manufacturers recommend a minimum end gap of . 004 inches times the bore diameter for the top piston compression ring. So for a 4 inch bore, the standard end gap would be . 016 inches.
What is ring groove clearance?
Pistons are grooved to fit rings that seal the cylinder’s compression and allow for lubrication of the cylinder walls. Place the new ring into the top piston groove, and then place a feeler gauge into the gap between the new ring and the upper land. …
What is piston clearance?
Piston clearance is the leeway or hole between the cylinder and metal barrel, to stay away from harm because of over the top development of cylinder on getting warmed amid ignition. It is otherwise called a piston to bore clearance.
What happens if you install piston rings wrong?
Compression Rings Rings installed in the wrong groove or wrong side up can lead to excessive oil pumping, excessive blow-by, and in some cases completely dry up the bore, causing ring and cylinder scuffing as well as accelerated wear. (Compression rings must never be spiraled on the piston.)
