The Main Heating Coil Airflow is equal to the Design Heating Airflow.
- Main Heating Coil Airflow = 500 cfm.
- Leaving Coil Temperature = 122.3 F.
- Entering Coil Temperature = 55.9 deg F.
- Main Heating Coil Capacity = (1.0882) x (500) x (55.9 – 122.3) = -36,128 Btu/hr = -36.1 MBh.
- Reheat Coil Airflow = 500 cfm.
What is the difference between hot water heating coils and steam heating coils?
Standard Steam The supply and return connections are often on the same end like a hot water coil. But, steam is very different than hot water, and the coil must be built for and circuited for steam. Keep in mind that steam is always more erosive than hot water.
What is hot water coil?
Hot water coils are a type of heat exchanger often called hydronic coils that use hot water from a boiler to heat or remove moisture from the air. This is a type of heat exchanger mostly used in commercial and industrial air handler units, roof top units as well as ductwork installations downstream.
How do you calculate coil size?
To obtain the coil length we have to divide the result by the section of the coil determined by coil width and thickness. The coefficient 1000 is used to compensate the dimensions in [mm] with the length in [m]. For example, a coil with OD = 1600mm, ID = 508mm and T = 0,6mm results in a length of 3010 meters.
How do you calculate heat load?
Heat load (BTU) = Length (m) x Width (m) x Height (m) x 141. So, for a room measuring 5m x 4m x 3m = 60 > x 141 = 8,460 BTU. (For measurements in feet, the formula becomes: Heat load (BTU) = Length (m) x Width (m) x Height (m) x 4)
How does a heat exchanger coil work?
Coil heat exchangers in their simplest form use one or more tubes which run back and forth a number of times. Heat is transferred from the hot inner fluid to the tube wall via convection, it then conducts through the pipe wall to the other side and the outer fluid carries this away also through convection.

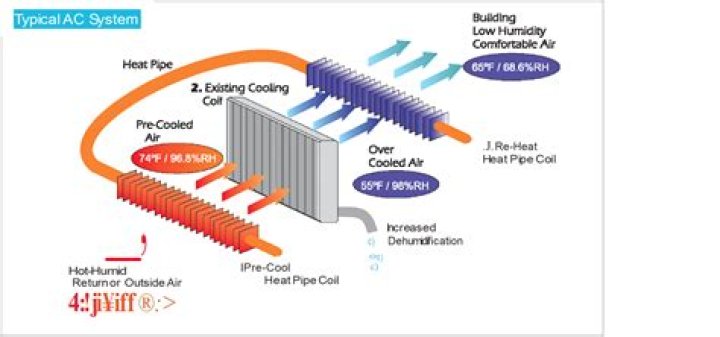

How does a reheat coil work?
Reheat for dehumidification is simply cooling the air with the air conditioner to pull out the moisture. But instead of throwing the heat outside, the reheat coil simply puts that heat back Into the original air stream. It forces an air conditioner to act like a poorly designed dehumidifier.
What are hot water coils used for?
Heating hot water coils are an integral part of any HVAC system that relies on boilers to provide comfort heating. Because this technique has been used for decades in the commercial space, it is not uncommon for our customers to request replacement parts for air handling units that are no longer in production.
What does PIW mean in steel?
pounds per inches wide
(PIW) – Designates pounds per inches wide of a coil. Determined by taking the coil weight and dividing by the width (Example 5,400 lbs. coil at 45” wide = 120 PIW).
What is hot water heating coil?
Hot water coils are heat exchangers used to heat air streams, and are at the heart of your heating system. The coils consist of rows of tubes that pass through sheets of formed fins. As cold air passes through the coils, heat transfers from the hot water flowing through the tubes to the air in the coil.
reheat coil 1. In an air-conditioning system, a coil which heats air in the supply duct to control its temperature. 2. A coil which is heated to control the temperature of air being furnished to individual zones, 1.
What does a hot water coil do?
Hot Water Coil Design. Hot water coils are used to heat air streams. Air moves through the fin contact area, and hot water (usually around 180 degrees Fahrenheit ) moves through the tubes.
What are hot water booster coils?
Booster coils are designed for air heating applications using hot water and are generally used for duct installations. They’re usually circuited without headers due to their smaller size, but they can also come with headers, and we can offer them in various casing configurations as needed.
