If you drew your arc from the inside of your bend, add 1/2 the tube outer diameter to get your true center-line radius. If you drew your arc from the outside (top) of your bend, subtract 1/2 of the tube outer diameter to get your true center-line radius.
How do you bend an AC pipe?
How to Bend Copper Pipe Without Kinks for an Air Conditioner
- Select a tubing bender with the correct sized bending die.
- Open the tubing bender’s handles to the full open position.
- Slip the copper pipe into the tubing bender’s clamps.
- Position the pipe in the valley.
- Squeeze the tubing bender’s handles together.
Can you bend ACR copper?
It is possible to physically bend drawn general purpose (H58) tubing, but the result is not acceptable. Bending H58 is not recommended by the tubing manufactures. Only Soft Anneal (O60) or Light Drawn (H55) should be used when field bending ACR Type L or Type K copper tube.

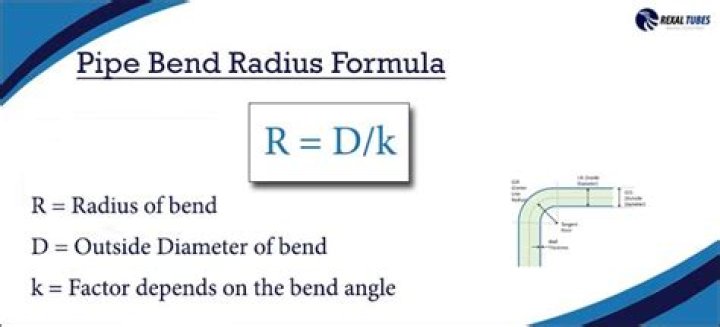

What is pipe bending radius?
The bending radius is expressed in relation to the pipe’s outer diameter. If the radius is equal to the pipes diameter then the radius is 1D. The radius is 2 times greater than the outer diameter then the pipes bends is 2D. There are also different standard pipe bend angles ranging from 15% degrees to 180 degrees.
What is a 1.5 D Bend?
The D represents the outside diameter of the pipe, measured in inches. For instance, a 1.5D bend would feature a curve 1.5 times larger than the diameter of the pipe to be bent, so if you needed to bend a pipe 2 inches in diameter with a 1.5D bend, you would end up with a bend of 3 inches in radius.
How much can you bend line set?
You can bend up to about 1″ by hand but it gets progressively harder with size. Personally, we don’t get preinsulated lineset. It’s much cheaper to get insulation separately. We use benders on 1/2″and larger.
How do you bend soft copper tubing without kinking?
Use Sand or Salt to Bend the Pipe
- Straighten out the copper pipe or tubing.
- Tape off the bottom of the copper pipe with duct tape or electrical tape.
- Fill the copper pipe with sand or salt, using a funnel.
- Tape up the other end of the pipe.
- Bend the pipe to the desired curve.
What type of copper Cannot be used for bending?
(1) Types M and DWV copper tube shall not be bent. (2) Bends in copper tubing of soft or bending temper shall be made with tools manufactured and sized for the purpose.
At what temperature can you bend copper?
Bending copper pipe and tube temperatures
| Copper or Copper Alloy | Temperature Range (oF) |
|---|---|
| Copper silicon | 1300 – 1600 |
| CuNi 70/30 | 1700 – 2000 |
| CuNi 80/20 | 1600 – 1900 |
| CuNi 90/10 | 1400 – 1800 |
What is the radius of bend in a pipe?
The radius is 2 times greater than the outer diameter then the pipes bends is 2D. There are also different standard pipe bend angles ranging from 15% degrees to 180 degrees. Carbon Steel Pipe Bend
What is a long radius bend?
Long Radius Bend The angle defines how quickly or slowly the direction of flow is changed and what kind of pressure is excerpted onto the piping bend wall as a result of the change in direction. To know that different bending radiuses and sizes of the piping bends, please contact us to receive a pipe bending radius chart.
What are the different types of pipe bends?
There are also different standard pipe bend angles ranging from 15% degrees to 180 degrees. Carbon Steel Pipe Bend. Long Radius Bend. The angle defines how quickly or slowly the direction of flow is changed and what kind of pressure is excerpted onto the piping bend wall as a result of the change in direction.
What is the velocity of refrigerant in refrigeration piping?
Good refrigeration piping design requires that the refrigeration lines be pitched in the direction of flow at approximately 1/2 inch per 10 feet or 1 inch per 20 feet. Refrigerant velocities in vertical lines should be at least 1500 ft/min to ensure good oil return; velocities in horizontal lines should be at least 750 ft/min. Suva refrigerants ®
