U-value formula U Value is the reciprocal of all resistances of the materials found in the building element. To calculate the U-Value of the building element the R-Value of all the different components that make up that element will be considered. U-Value (of building element) = 1 / (Rso + Rsi + R1 + R2 …)
How do you calculate the U-Value of thermal conductivity?
The calculation is as follows: U-value = Thermal conductivity / thickness (where the thickness is measured in metres). When you are comparing U-values, a lower number is better – i.e. a lower U-value signifies less heat loss through a material; therefore it is a better insulator.
How do you calculate U-Value from R?
In simple terms, U-value is the mathematical reciprocal of R-value; that is, U = 1/R and R = 1/U. For instance, a material with an R-Value of 5 has a U-value of 0.2 (1 divided by 5).
What is BR443?
General. This BRE report, BR443 (2019), is an update to the 2006 edition, primarily reflecting changes in British, European and International standards.
What is the U-value of 100mm kingspan?
4.30
Product Application
| Product | R Value (mK/W) | U Value (W/m²K) |
|---|---|---|
| TP10 100mm | 4.30 | 0.23 |
| TP10 105mm | 4.55 | 0.22 |
| TP10 110mm | 4.75 | 0.21 |
| TP10 115mm | 5.00 | 0.20 |
What is the U-value of 100mm Rockwool?
0.14 w/m²k
laying 100mm Twin Roll between the joists and overlaying the joists with 200mm Twin Roll provides a U-value of 0.14 w/m²k which exceeds the minimum U-value of 0.16 w/m²k as required by building regulations.
What is the U-value of EPS?
0.12W/m2K
With EPS, U-values as low as 0.12W/m2K are achievable with the right planning, design and installation.
What is the U-value of R19?
Most homes in the northeast are insulated with a minimum of R19 in the walls. Good windows these days boast a U value of 0.32 (or an R value of 3.13) thats approximately only 16% of the R value that’s in the wall.
How do you find the weighted area value?
The area-weighted U-value is given by the following expression: {(U1 x A1) + (U2 x A2) + (U3 x A3) + …)} Where: U = the U-Value of the element e.g.: wall U1, roof U2, floor U3 etc. A = the total area of the element (m2) e.g.: wall A1, roof A2, floor A3 etc.
What is the U-value of concrete?
Calculating U-value
| Material | Thickness | Conductivity (k-value) |
|---|---|---|
| Outside surface | – | – |
| Clay bricks | 0.100 m | 0.77 W/m⋅K |
| Glasswool | 0.100 m | 0.04 W/m⋅K |
| Concrete blocks | 0.100 m | 1.13 W/m⋅K |
What is the U-value of 25mm Kingspan?
1.05
Product Application
| Product | R Value (mK/W) | U Value (W/m²K) |
|---|---|---|
| TP10 25mm | 1.05 | 0.95 |
| TP10 30mm | 1.30 | 0.77 |
| TP10 40mm | 1.70 | 0.59 |
| TP10 50mm | 2.15 | 0.47 |
What is the U-value of plasterboard?
U values of typical building methods
| Wall (outer) | ||
|---|---|---|
| plasterboard, 4 inch studding, plasterboard | 0.32 | 1.8 |
| Floor (Ground) | ||
| solid concrete | 0.14 | 0.8 |
| suspended – timber | 0.12 | 0.7 |
When was the U-value calculator BR 443 published?
Conventions for U-value calculations (2006 edition) BR 443, was written by Brian Anderson and published by BRE on 11 July 2006. The 44 page guide is in line with Part L of the Building Regulations ( Conservation of fuel and power) which came into effect in April 2006.
What is the U-value calculator for BRE?
BRE – u-values calculator The BRE U-value calculator obtains U-values in accordance with the methods set out in BS EN ISO 6946 BS EN ISO 13370 BS EN ISO 10077-1 BRE IP 10/02 SCI P312 BRE Digest 465

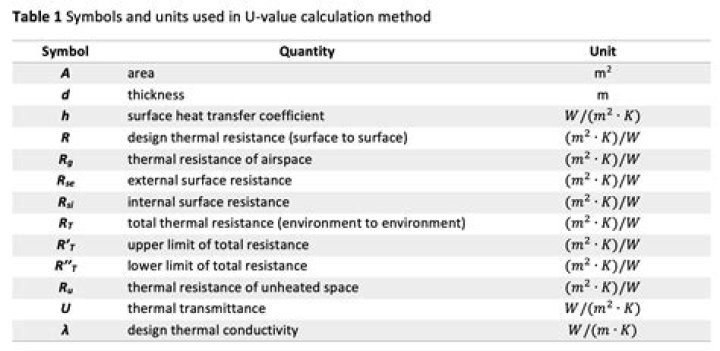

How do you calculate the U-value?
U-value calculation is at its simplest for a building element which consists solely of plane, parallel, uniform layers: the heat flow through such an element is directly from inside to outside in a straight line, and all that is needed to obtain the U-value is a simple sum of the thermal resistances of each layer.
How are U-values calculated for compliance with the building regulations?
Calculation methods for U-values appropriate for demonstrating compliance with the building regulations are based on standards developed by the European Committee for Standardisation (CEN) and the International Organisation for Standardisation (ISO) and published as British Standards.
