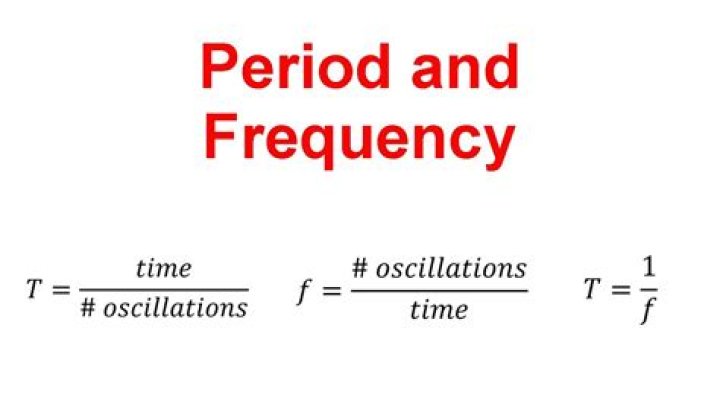

How to get period from frequency?
- The formula for period is T = 1 / f , where “T” is period – the time it takes for one cycle to complete, and “f” is frequency.
- To get period from frequency, first convert frequency from Hertz to 1/s.
- Now divide 1 by the frequency. The result will be time (period) expressed in seconds.
What is BW of FM using Carson’s rule?
Standard broadcast stereo FM, with a peak deviation of 75 kHz, has a highest modulating frequency (which combines L+R and L-R) of 53 kHz. Most of the energy therefore falls within an approximate bandwidth of 2 * (75 + 53) = 256 kHz.
What is the bandwidth of FM radio?
FM Broadcast Radio
| Bandwidth | 38 kHz,108 kHz,118 kHz,184 kHz,200 kHz |
| Location | Worldwide |
| Short Description | Commercial Broadcast FM radio stations. Used for the broadcast of many different radio programs, including music, news, sports, weather, and talk shows. |
| I/Q Raw Recording | Download file |
| Audio Sample |
How do we calculate time?
To solve for time use the formula for time, t = d/s which means time equals distance divided by speed.
Why carrier is suppressed?
Reduced-carrier transmission is an amplitude modulation (AM) transmission in which the carrier signal level is reduced to reduce wasted electrical power. Suppressed carriers are often used for single sideband (SSB) transmissions, such as for amateur radio on shortwave.
What is the bandwidth of WBFM?
Commercial FM broadcasting requires 150 KHz of bandwidth to transmit a15 KHz audio signal, 5 times the bandwidth required for an AM signal. Commercial WBFM broadcasts occur in the VHF range, between 88 and 108 MHz. The carrier frequencies start at 88.1 MHz and are separated by 200 KHz intervals.
How do you calculate the bandwidth of an FM signal?
A good estimate of an FM signal’s bandwidth can be obtained using Carson’s Rule. Carson’s Rule is a simple calculation using the transmitter’s engineered peak frequency deviation value and the highest modulating frequency (highest audio frequency in the phone mode case).
How do you calculate rule bandwidth occupancy?
To calculate the CARSON’S RULE bandwidth occupancy of this signal, add the highest audio frequency to the peak deviation (15KHz + 75KHz = 90KHz). Then multiply by two to include both the upper and lower sideband (90KHz X 2 = 180KHz).
How do I calculate my bandwidth for streaming?
Here are some steps to follow when calculating bandwidth: Establish the type of connection you have as the different types offer varying speeds. Perform a speed test to determine your actual bandwidth. How much bandwidth do I need for 4k? For 4K, online streaming is the biggest source of content.
What is frequency modulation & bandwidth?
Frequency modulation is still in widespread use, both for broadcasting and for two way radio communications. As a result, a knowledge of the signal bandwidth and the way in which the sidebands are produced is useful for these systems. It is worth summarising some of the highlight points about frequency modulation sidebands, FM spectrum & bandwidth.
