The flow rate can be found in m3/s using the formula:
- Q = Av.
- Answer: The flow rate depends on the area of the chute the water is flowing through:
- Q = Av.
How much water can a 1 inch pipe pass?
Water Flow (GPM/GPH) based on Pipe Size and Inside/Outside Diameters
| Assume Average Pressure (20-100PSI). About 12 f/s flow velocity | ||
|---|---|---|
| 1″ | 1 – 1.03″ | 2,200 |
| 1-1/4″ | 1.25 – 1.36″ | 3,750 |
| 1-1/2″ | 1.5 – 1.6″ | 4,830 |
| 2″ | 1.95 – 2.05″ | 7,650 |
How much water can flow through a 4 inch drain pipe?
1106.2 Size of Storm Drain Piping
| PIPE SIZE (inches) | CAPACITY (gpm) | |
|---|---|---|
| 2 | 34 | 44 |
| 3 | 87 | 111 |
| 4 | 180 | 231 |
| 5 | 311 | 331 |
What is normal flow rate?
Normal flow rate is 1 atmosphere (101.3 kPa) or 14.696 psia at 32 0F (0 0C). Actual flow rate is the actual volume of fluid that passes a given point based on given pressure and temperature of the process.

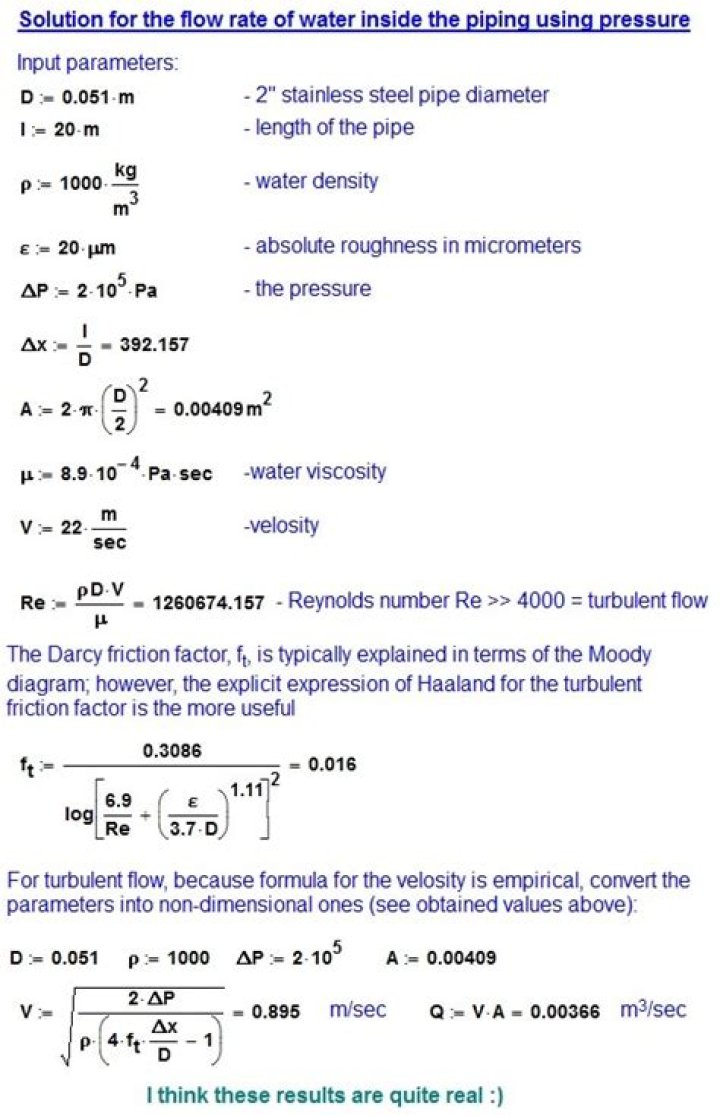

Can you calculate flow rate from pressure and diameter?
With a radius, for instance, of 0.05 meters, 0.05 ^ 2 = 0.0025. Multiply this answer by the pressure drop across the pipe, measured in pascals. With a pressure drop, for instance, of 80,000 pascals, 0.0025 x 80,000 = 200. The pipe’s flow rate is 0.654 cubic meters per second.
How do I calculate the size of my drain pipe?
Divide the pipe’s internal diameter by 2. For example, if the pipe has an internal diameter of 0.1 meters: 0.1 ÷ 2 = 0.05 m This is the pipe’s radius. Square this radius: 0.05² = 0.0025 m². Multiply the result by pi, which is approximately 3.142: 0.0025 × 3.142 = 0.007855 m².
How many gallons per minute can you get through a 2 inch pipe?
850 gallons per minute
2-inch pipe: 850 gallons per minute.
How do you calculate water flow through a pipe?
To calculate the water flow rate through a given pipe size, multiply the area of the inner cross-section of the pipe by the velocity of the water.
What is the flow rate of water through a pipe?
At a low flow velocity of 6 feet per second, water moves through the pipe at 16 gallons per minute, or 960 gallons an hour. Average flow velocity of 12 feet per second passes 37 gallons per minutes, or 2,220 gallongs per hour. These flow rates depend on variables such as bends, fittings, pressure and viscosity .
How do you calculate the volume of water in a pipe?
After the area of the pipe has been calculated, the volume of the pipe can be determined by multiplying the area of the circle (base) by the height of the pipe. This is the volume of the pipe under closed system circumstances. A closed system means that there is no water flowing through the pipe.
How to measure flow rate in gallons per minute/gpm?
Collect the Water Set the timer to 10 seconds. Turn on the cold water full-blast.
