Square the pipe’s radius. With a radius, for instance, of 0.05 meters, 0.05 ^ 2 = 0.0025. Multiply this answer by the pressure drop across the pipe, measured in pascals. With a pressure drop, for instance, of 80,000 pascals, 0.0025 x 80,000 = 200.
What is the relationship between flow rate and pressure?
This relationship can be expressed by the equation F = Q/t. Fluid flow requires a pressure gradient (ΔP) between two points such that flow is directly proportional to the pressure differential. Higher pressure differences will drive greater flow rates. The pressure gradient establishes the direction of flow.
What is the flow rate of a 1 inch pipe?
Water Flow (GPM/GPH) based on Pipe Size and Inside/Outside Diameters
| Assume Average Pressure (20-100PSI). About 12 f/s flow velocity | ||
|---|---|---|
| 1/2″ | 0.5 – 0.6″ | 14 |
| 3/4″ | 0.75 – 0.85″ | 23 |
| 1″ | 1 – 1.03″ | 37 |
| 1-1/4″ | 1.25 – 1.36″ | 62 |
Does pipe diameter affect water pressure?
In water flowing pipeline, pipe size and water pressure are dependent on each other. Because if the diameter of a pipe decreased, then the pressure in the pipeline will increase. As per Bernoulli’s theorem, pressure can be reduced when the area of conveyance is reduced.
What is the velocity of water in a pipe?
What is a ‘good’ pipe velocity?
| Fluid | Typical Pipe Velocity (m/s) |
|---|---|
| Water | 0.9 – 2.4 |
| Carbon tetrachloride | 1.8 |
| Chlorine, liquid | 1.5 |
| Ethylene glycol | 1.8 |

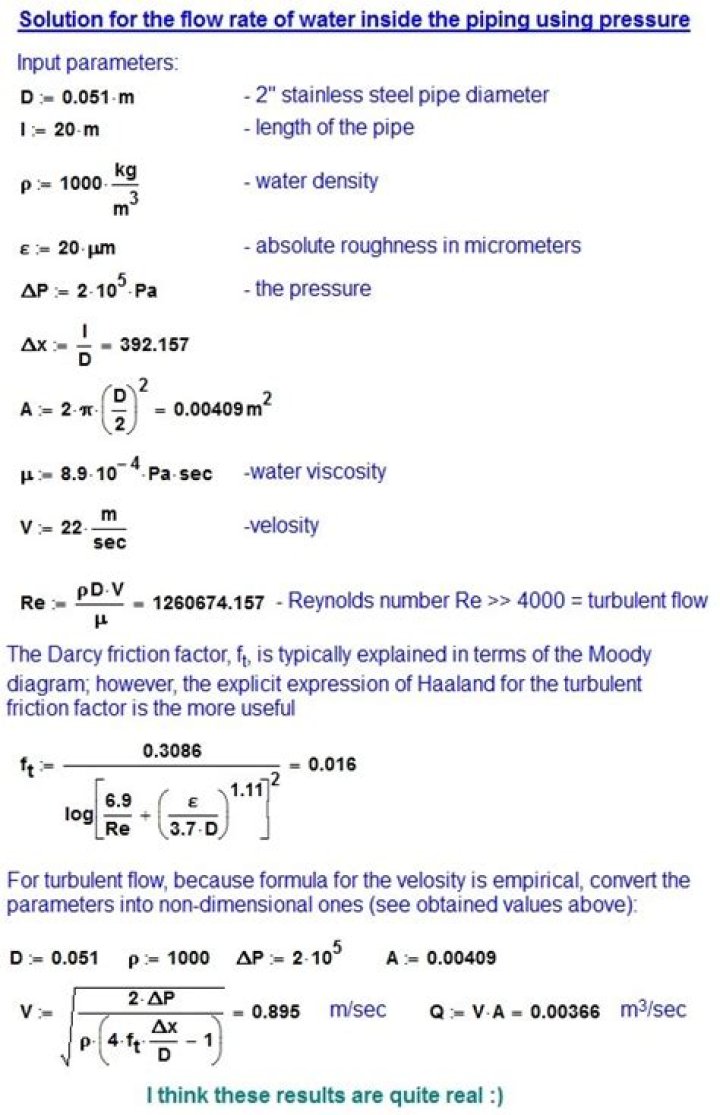

How do you calculate water flow through a pipe?
To calculate the water flow rate through a given pipe size, multiply the area of the inner cross-section of the pipe by the velocity of the water.
How do you calculate flow rate through a pipe?
To calculate the flow rate in a cylindrical pipe, the basic formula, which is flow rate is equivalent to pipe cross-sectional area multiplied by velocity, can be used. Here the area is calculated as pi times pipe diameter squared and divided by four.
Does increasing pipe size increase water pressure?
pipe size. Increasing the pipe size will just insure that whatever amount of water is available at the point of increase will arrive at the faucet. ANY restriction ahead of that point will still affect volume, and thus pressure, in the new section.
How do you calculate the volume of water in a pipe?
After the area of the pipe has been calculated, the volume of the pipe can be determined by multiplying the area of the circle (base) by the height of the pipe. This is the volume of the pipe under closed system circumstances. A closed system means that there is no water flowing through the pipe.
