The most common way to eliminate the noise is through a 60 Hz notch filter. Because there are inherent variations in the 60 Hz signal, a notch filter is not robust against signal source frequency changes.
What is a notch filter Matlab?
Description. The fdesign. notch function returns a notch filter design specification object that contains the specifications for a filter, such as passband ripple, stopband attenuation, and filter order. Then, use the design function to design the filter from the filter design specifications object.
What is a 60Hz notch filter?
The notch filter is a type of band-stop filter with a narrow stopband, that notches out the 60Hz. The circuit uses the TLV522 notch filter; a nanopower op-amp that offers optimum performance and provides 8kHz of gain bandwidth from 500nA of quiescent current.
How do you filter 50 Hz in Matlab?
You cannot remove only 50 Hz exactly with a digital filter of that type. Instead you effectively construct a lowpass filter that starts to drop down near 50 Hz, cutting off high frequencies, “plus” (in some sense) a highpass filter that starts coming up near 50 Hz, cutting off low frequencies.
How do you make a notch filter?
One way to build a notch filter is to construct it as a band-pass filter whose output is subtracted from the input (1 – BP). Another way is with cascaded low-pass and high-pass sections, especially for the band-reject (wideband) case. In this case, the sections are in parallel, and the output is the difference.
What is 60Hz noise?
The electricity hum (also called the “mains hum”) emerges because electricity runs on alternating current (AC), which transposes voltage in the pattern of a sine wave. In the US, the frequency of this current is 60 Hz, which creates a tone almost exactly halfway between A♯ and B.

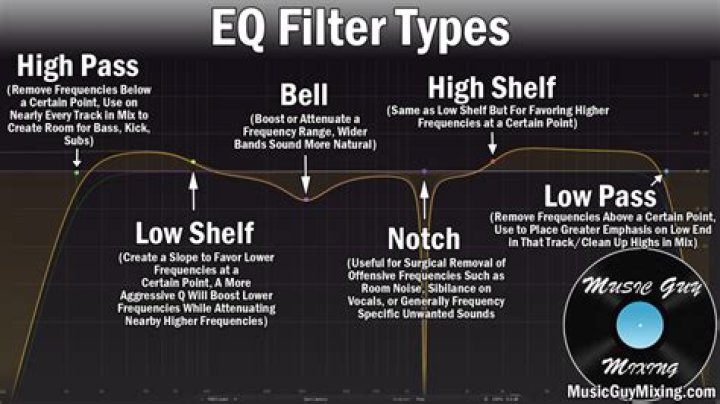

When would you use a notch filter?
Notch filters are used to remove a single frequency or a narrow band of frequencies. In audio systems, a notch filter can be used to remove interfering frequencies such as powerline hum. Notch filters can also be used to remove a specific interfering frequency in radio receivers and software-defined radio.
What is a common reason for using a notch filter?
A notch filter, usually a simple LC circuit, is used to remove a specific interfering frequency. This is a technique used with radio receivers that are so close to a transmitter that it swamps all other signals. The wave trap is used to remove or greatly reduce the signal from the nearby transmitter.
What is the frequency of notch filter?
Hence, the notch filter is a complement of the bandpass filter. For example, if a Notch Filter has a stopband frequency from 100 MHz to 200 MHz, then it will pass all the signals from DC to frequency of 100 MHz and above 200 MHz, it will only reject frequency between 100 MHz to 200 MHz.
What is the notch frequency of the notch filter?
The notch filter has the desired bandwidth with the notch located at 60 Hz, or radians per sample. Compare this plot to the comb filter plot shown for iircomb. Notch frequency, specified as a positive scalar in the range 0.0 < w0 < 1.0, where 1.0 corresponds to π radiance per sample in the frequency range.
How to eliminate 60 Hz noise with a Butterworth notch filter?
Eliminate the 60 Hz noise with a Butterworth notch filter. Use designfilt to design it. The width of the notch is defined by the 59 to 61 Hz frequency interval. The filter removes at least half the power of the frequency components lying in that range.
How do you set the bandwidth of a notch filter?
For this example, set the Q factor for the filter to 35 and use it to specify the filter bandwidth. The notch filter has the desired bandwidth with the notch located at 60 Hz, or 0. 4 π radians per sample. Compare this plot to the comb filter plot shown for iircomb.
What is the best way to filter 50 Hz?
I need to filter 50 Hz from a signal. It looks like the best options are either a notch filter or a LMS filter, but I don’t have a copy of the noise so a notch filter seems to be the best choice. I don’t need the frequencies normalised, as I know the sampling frequency (16kHz), and the duration is 30 seconds.
