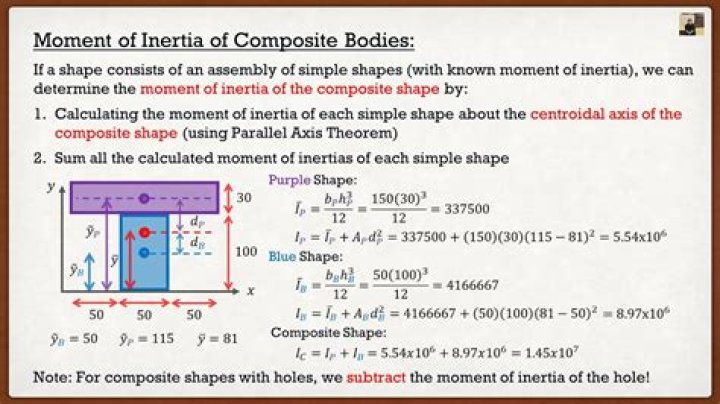

1 Composite Area Method. For a composite shape made up of subparts, the moment of inertia of the whole shape is the sum of the moments of inertia of the individual parts, however the moment of inertia of any holes are subtracted from the total of the positive areas.
What is the moment of inertia of an area?
The area moment of inertia is a property of a two-dimensional plane shape which characterizes its deflection under loading. It is also known as the second moment of area or second moment of inertia.
What is the moment of inertia of a shape?
The moment of inertia, or more accurately, the second moment of area, is defined as the integral over the area of a 2D shape, of the squared distance from an axis: where A is the area of the shape and y the distance of any point inside area A from a given axis of rotation.
How do you find the moment of inertia?
The formula for moment of inertia is the “sum of the product of mass” of each particle with the “square of its distance from the axis of the rotation”. The formula of Moment of Inertia is expressed as I = Σ miri2.
Does area moment of inertia depend on material?
Area moment of inertia is defined as the resistance offered by an object either to bend or to deflect. Here, inertia is independent of mass and is dependent on the area of the object.
Is area moment of inertia the same as moment of inertia?
The mass moment of inertia is used as a rotational analog of mass, and the area moment of inertia is used mainly for beam equations. The other difference is the units used in both the moments of inertia.
How do you find the moment of an area?
The statical or first moment of area (Q) simply measures the distribution of a beam section’s area relative to an axis. It is calculated by taking the summation of all areas, multiplied by its distance from a particular axis (Area by Distance).
What is moment of inertia in SOM?
Definition of moment of inertia : a measure of the resistance of a body to angular acceleration about a given axis that is equal to the sum of the products of each element of mass in the body and the square of the element’s distance from the axis.
What is area moment of inertia used for?
Area Moment of Inertia or Moment of Inertia for an Area – also known as Second Moment of Area – I, is a property of shape that is used to predict deflection, bending and stress in beams.
What is the combined moment of inertia?
Moment of inertia also appears in momentum, kinetic energy, and in Newton ‘s laws of motion for a rigid body as a physical parameter that combines its shape and mass. There is an interesting difference in the way moment of inertia appears in planar and spatial movement.
What is the moment of inertia of an object?
The moment of inertia of an object is a calculated quantity for a rigid body that is undergoing rotational motion around a fixed axis.
How do you calculate the moment of inertia of a circle?
The formula for moment of inertia for a circle is the product of pi over four times the radius to the power of four. The area moment of inertia is also called the second moment of area.
What is the moment of inertia of a rod?
The moment of inertia of the rod about about an axis that is perpendicular to the rod and that passes through its center of mass is given by Icm=112mL2. Find Iend, the moment of inertia of the rod with respect to a parallel axis through one end of the rod.
