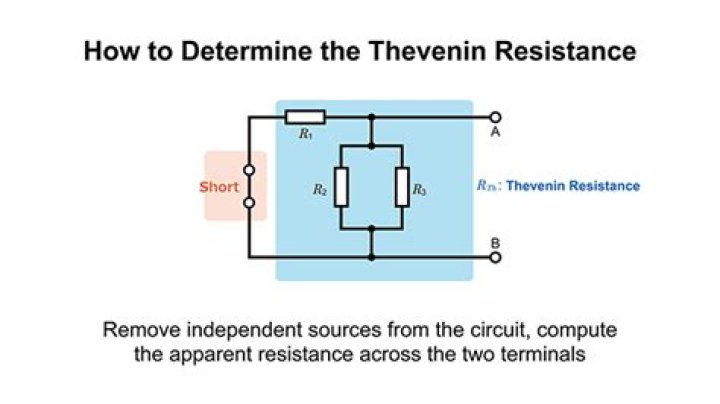

Find the Thevenin resistance by removing all power sources in the original circuit (voltage sources shorted and current sources open) and calculating total resistance between the open connection points. Draw the Thevenin equivalent circuit, with the Thevenin voltage source in series with the Thevenin resistance.
What is Thevenin equivalent resistance?
A Thevenin equivalent circuit contains one Thevenin resistance and Thevenin voltage source connected with a load, as shown in the figure below. Thevenin Theorem. Thevenin resistance (Rth) is also known as equivalent resistance. And Thevenin voltage (Vth) is an open-circuit voltage across load terminals.
How do you calculate load resistance?
It is denoted as p. R=pXL/A. For DC circuit, Load resistance simply depends on the material composition of load, for example a DC light bulb contains Nichrome wire and it determines its resistance and to calculate it, you’ll need only that formula from above.
What is the load resistance of a circuit?
At the most basic level, load resistance is the cumulative resistance of a circuit, as seen by the voltage, current, or power source driving that circuit. This includes the resistance of the wires and the resistance of any devices connected to those wires.
What is VTH and RTH in Thevenin’s equivalent?
Thévenin’s theorem is a process by which a complex circuit is reduced to an equivalent circuit consisting of a single voltage source (VTH) in series with a single resistance (RTH) and a load resistance (RL). The theorem also helps to choose the optimal value of the load (resistance) for maximum power transfer.
The measured or calculated equivalent resistance of the circuit across the terminals is called Thevenin Equivalent resistance. The entire active circuit or network is a voltage source of Thevenin Voltage with Thevenin resistance connected in series with it.
How do I calculate the equivalent Thevenin source voltage and series resistance?
Calculating the equivalent Thevenin source voltage and series resistance is actually quite easy. First, the chosen load resistor is removed from the original circuit, replaced with a break (open circuit): Next, the voltage between the two points where the load resistor used to be attached is determined.
How do you draw a Thevenin equivalent circuit?
Draw the Thevenin equivalent circuit, with the Thevenin voltage source in series with the Thevenin resistance. The load resistor re-attaches between the two open points of the equivalent circuit.
What is Thevenin’s theorem in circuit theory?
Thevenin theorem (also known as the Helmholtz–Thévenin theorem) states that any linear circuit containing only voltage sources, current sources, and resistances can be replaced by an equivalent combination of a voltage source (V Th) in series with a single resistance (R Th) connected across the load.
