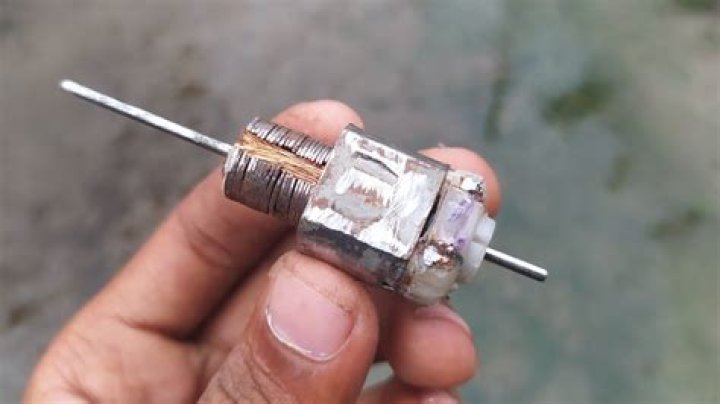

Look for the stator core construction and rotor. If there is no commutator, then it is a AC motor. If there is a commutator and brushes, it may be either a DC motor or an AC commutator motor (Universal motor).
How do you control the speed of a universal motor?
PWM control is a more advanced solution for controlling the speed of a universal motor. In this method rectified AC line voltage is switched at a high frequency by a Power MOFSET or IGBT device to generate time varying voltage for the motor.
Can you make an AC motor run on DC?
The AC series motor you describe is a universal motor, and will work fine on DC. The speed characteristics will be a little different, since when running on AC there’s a significant reactive drop in the field windings that reduces the available driving emf.
How many wires does a single-phase motor have?
two-wire
Single-phase power is a two-wire alternating current (ac) power circuit. Typically, there is one power wire—the phase wire—and one neutral wire, with current flowing between the power wire (through the load) and the neutral wire.
How do you change the direction of a universal motor?
The direction of rotation of a universal motor can be changed by either: (i) Reversing the field connection with respect to those of armature; or (ii) By using two field windings wound on the core in opposite directions so that the one connected in series with armature gives clockwise rotation, while the other in …
Why universal motor is called universal?
Universal Motor is a special type of motor that can run on a DC supply or a single-phase AC supply. Since it can run both on AC and DC, it is called a universal motor.
Do universal motors run better on AC or DC?
A universal motor is a series-wound electric motor that can operate on both AC and DC power. These are a lot compared to those of DC series motors but the series motor develops less torque when working from an AC supply than when working from an equivalent DC supply.
Is Tesla motors AC or DC?
Tesla, for example, uses alternating current (AC) induction motors in the Model S but uses permanent-magnet direct current (DC) motors in its Model 3. There are upsides to both types of motor, but generally, induction motors are somewhat less efficient than permanent-magnet motors at full load.
Can a universal motor run on AC power?
Current is channeled into the rotor through brushes. Universal motors are theoretically able to operate on ac or dc. The unit as described above, however, would thrive on dc but not operate efficiently on ac. To run well off ac mains, the motor needs modifications.
What are the basics of universal electric motors?
Basics of universal electric motors. For a rotary electric motor to work, there must be two magnetic fields, one associated with the stator and the other with the rotor. At least one of these fields must be moving so the rotor’s magnetic field constantly pursues the stator’s magnetic field, thus creating rotary mechanical motion and energy output.
What is the difference between AC and DC motors?
Compared to the universal motor intended for dc operation, there are more coils and plates in the armature with fewer windings in each coil. The design goal is to reduce the additional inductance that is a consequence of ac operation.
How does a three-wire reversible motor work?
In the split-series, three-wire reversible type universal motor, one stator coil is used to obtain one direction and the other stator coil to obtain the other direction with only one stator coil being in the circuit at a time. The armature connections must be on neutral in order to obtain satisfactory operation in both directions of rotation.
