If each capacitor has BOTH terminals connected to BOTH terminals of the others, then they are in parallel. If each capacitor has only one terminal connected to one terminal of another capacitor, they are in series.
How can you tell parallel and series?
REVIEW:
- In a series circuit, all components are connected end-to-end, forming a single path for current flow.
- In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.
How do you identify parallel circuit?
A Parallel circuit has certain characteristics and basic rules:
- A parallel circuit has two or more paths for current to flow through.
- Voltage is the same across each component of the parallel circuit.
- The sum of the currents through each path is equal to the total current that flows from the source.
What makes a capacitor in parallel?

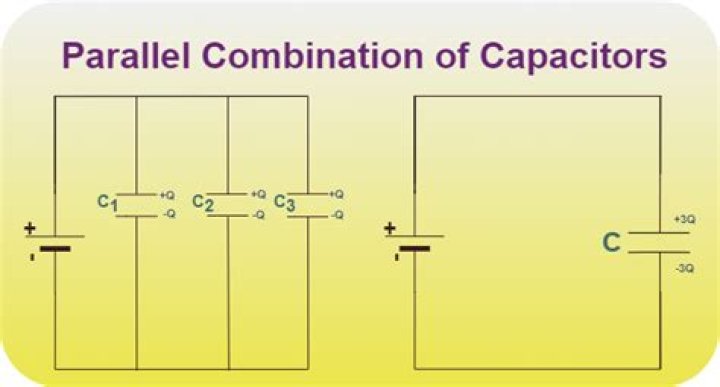

(b) The equivalent capacitor has a larger plate area and can therefore hold more charge than the individual capacitors. CpV = C1V + C2V + C3V. Cp: Cp = C1 + C2 + C3 + …. Cp = 1.000 µF + 5.000 µF + 8.000 µF = 14.000 µF.
What is series capacitor?
When capacitors are connected one after another, they are said to be in series. For capacitors in series, the total capacitance can be found by adding the reciprocals of the individual capacitances, and taking the reciprocal of the sum.
What are the difference between series and parallel circuits?
In a parallel circuit, the voltage across each of the components is the same, and the total current is the sum of the currents flowing through each component. In a series circuit, every device must function for the circuit to be complete. If one bulb burns out in a series circuit, the entire circuit is broken.
What is the easiest way to identify series and parallel resistors?
The trick is to look at the nodes in the circuit. A node is a junction in the circuit. Two resistor are in parallel if the nodes at both ends of the resistors are the same. If only one node is the same, they are in series.
What is series combination of capacitors?
When one terminal of a capacitor is connected to the terminal of another capacitors , called series combination of capacitors. In series, each capacitor has same charge flow from battery.
How do you calculate parallel capacitance?
Capacitors in Parallel This is shown below. To calculate the total overall capacitance of a number of capacitors connected in this way you add up the individual capacitances using the following formula: CTotal = C1 + C2 + C3 and so on Example: To calculate the total capacitance for these three capacitors in parallel.
How do you calculate capacitance in parallel?
This is shown below. To calculate the total overall capacitance of a number of capacitors connected in this way you add up the individual capacitances using the following formula: CTotal = C1 + C2 + C3 and so on. Example: To calculate the total capacitance for these three capacitors in parallel.
How do capacitors add in series?
When adding together Capacitors in Series, the reciprocal ( 1/C ) of the individual capacitors are all added together ( just like resistors in parallel ) instead of the capacitance’s themselves. Then the total value for capacitors in series equals the reciprocal of the sum of the reciprocals of the individual capacitances.
What is the formula for adding capacitors?
The formula for the capacitors in series: When adding the series capacitors, the reciprocal i.e. \\frac {1} {C} C 1 of all the individual capacitors are added together.
What is capacitance of parallel capacitor?
When capacitors are connected in parallel, the total capacitance is the sum of the individual capacitors’ capacitances. If two or more capacitors are connected in parallel, the overall effect is that of a single equivalent capacitor having the sum total of the plate areas of the individual capacitors.
