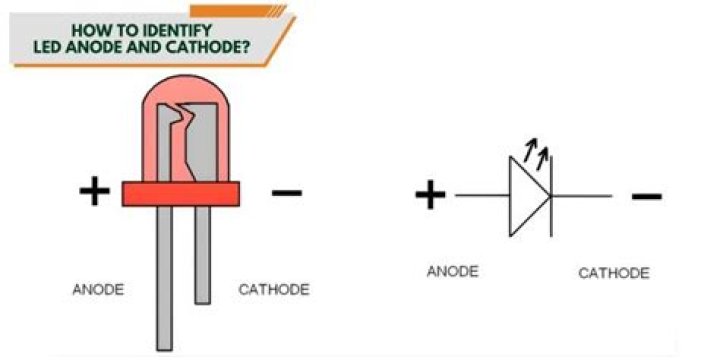

How do you know which is the anode and cathode in a LED?

If the LED has two leads with leads that are equal in length, you can look at the metal plate inside the LED. The smaller plate indicates the positive (anode) lead; the larger plate belongs to the negative (cathode) lead.

How do you determine which side of the LED is the cathode?

LED polarity For an LED to work it needs to be connected to a voltage source with the correct side. The voltage supply side of the diode is the positive (+) side, this is called the anode. The negative side is called the cathode.

Does an LED have an anode and cathode?

The anode is the LED positive side (where the current enters the diode) and the cathode is the negative side (where the current leaves the diode).

Is the anode or cathode marked?

The positive side is called the anode, and the negative one is called the cathode. The diode circuit symbol, with the anode and cathode marked.

How do I identify an LED?

A LED does not have a “Positive” or “Negative” lead. It has a lead identified as the “Cathode” or Kathode” or “k”. This is identified by a flat on the side of the LED and/or by the shortest lead. This lead goes to the 0v rail of the circuit or near the 0v rail (if the LED is connected to other components).

How do you identify an anode?

The electrode at which oxidation takes place is known as the anode, while the electrode at which reduction take place is called the cathode. If you see galvanic cell reduction take place at the left electrode, so the left one is the cathode. Oxidation takes place at the right electrode, so the right one is the anode.

How can you tell positive and negative pin LED?

You can try to find the longer leg, which should indicate the positive, anode pin. Or, if someone’s trimmed the legs, try finding the flat edge on the LED’s outer casing. The pin nearest the flat edge will be the negative, cathode pin.

How do you identify an LED?

What are the two features of an LED that allow you to identify the cathode?

The first is that LEDs have one lead that is longer that the other. This longer lead is the anode (+), and the shorter one is the cathode (-). The second feature is a small flat notch on the side of the LED. The lead that is closer to the notch is always the cathode.

How do you determine the anode and cathode?

The one with the highest reduction potential will be what you want to select as the reduction half-reaction and therefore be your cathode. The one with the lowest reduction potential will be what you want to select as the oxidation-half reaction and therefore be your anode.

How do you identify a cathode and anode in led LEDs?

LED’s or Light Emitting Diode’s don’t come with any labeling on it to identify Cathode(-ve,GND) or Anode(+ve). While referring to any schematic involving led’s we sometimes get confused with the identification of the terminals. So for identification , led’s comes with a unique way to identify its terminals as Anode or Cathode.

What is the difference between anode and cathode?

When you purchase an LED … longer leg is anode while shorter leg is cathode. What if you have cut the two leads to same length?? read on … Take one resistor between any value between 100Ohm to 500Ohm and connect it in series with the LED on bread board. Give a supply (from 3 to 9V).

What are the positive and negative leads of an led?

An LED has a positive lead know as the anode and a negative lead known as the cathode. An LED must be connected in a circuit the right way around – observe the polarity of the LED.

What happens at an anode in electrochemistry?

In the most basic form, an anode in electrochemistry is the point where an oxidation reaction occurs. Generally, at an anode, negative ions or anions due to its electrical potential tend to react and give off electrons. These electrons then move up and into the driving circuit.
