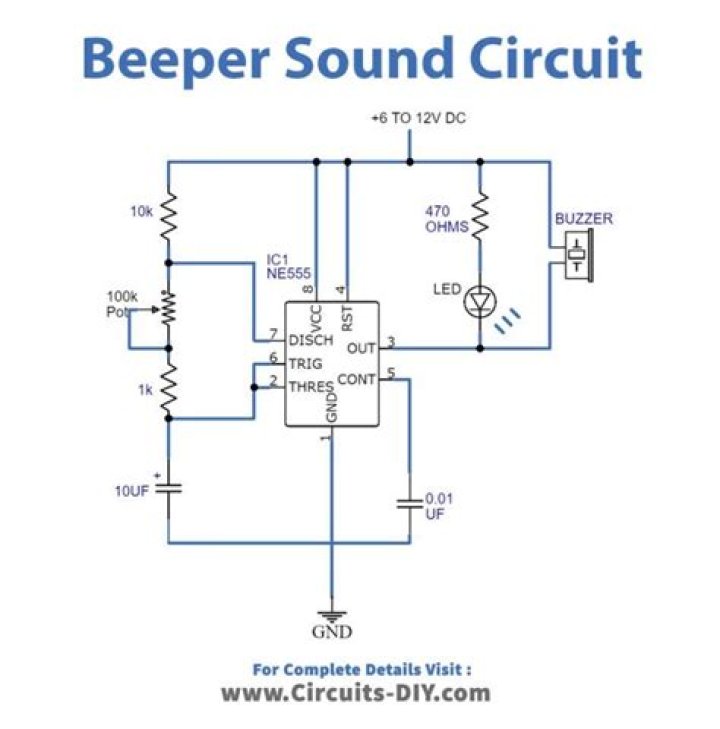

Electronics Projects: How to Make a Beeper
- Try building the circuit with a single 556 chip instead of two, 555 chips.
- Replace the 100 kΩ R3 with a 1 kΩ resistor, and then add a 1 MΩ potentiometer in series with the resistor. As you turn the potentiometer, the tone changes.
- Add a 1 MΩ potentiometer in series with R1.
What is buzzer circuit?
The buzzer is a sounding device that can convert audio signals into sound signals. It is usually powered by DC voltage. It is mainly divided into piezoelectric buzzer and electromagnetic buzzer, represented by the letter “H” or “HA” in the circuit.
What is piezoelectric buzzer?
Piezoelectric Sounders / Buzzers are sound components prepared by incorporating a piezoelectric vibration plate in a plastic case (resonator). Piezoelectric buzzers are sound components which generate a monotone using a built-in oscillation circuit.
How do you make a buzzer louder in a circuit?
Adding more batteries increases voltage, therefore making bulbs brighter, buzzers louder and motors move faster. Using batteries with a higher voltage increases energy supply, thus making bulbs, buzzers or motors, brighter, louder or faster.
What are the two kinds of a buzzer?
The most common device used for this purpose is the buzzer. Also known as a sounder, audio alarm or audio indicator, a buzzer is a basic audio device that generates a sound from an incoming electrical signal. Buzzers come in two primary forms — piezo buzzers and magnetic buzzers.
What is the working principle of buzzer?
Working Principle of Magnetic Buzzers The vibrating disk in a magnetic buzzer is attracted to the pole by the magnetic field. When an oscillating signal is moved through the coil, it produces a fluctuating magnetic field which vibrates the disk at a frequency equal to that of the drive signal.
How many 555 ICs are used in a buzzer circuit?
BC547 – 1No. Buzzer – 1No. Here in the circuit diagram of the School/College quiz Buzzer circuit using 555 IC, we have used three 555 timer IC in bistable configuration. The important part is each 555 IC will have their own stable state controlled by separate buttons which will be accessed by the participants.
How does a 555 timer work?
The important part is each 555 IC will have their own stable state controlled by separate buttons which will be accessed by the participants. Another single button controls the other stable state of the all the timer ICs in common which is accessed by the organizer to reset the entire circuit.
How many circuits of simple 555 alarm sound generator are there?
We have 5 circuits of simple 555 Alarm sound. IC-555 timer is popular forever. It is easy for a beginner as a buzzer sound. Or 555 tone generator 8 ohm speaker. 1. Simple 555 alarm sound generator IC-555 is a pulse generator, high frequency.
How many different timing intervals are there for alarm buzzer sound?
Here this circuit is constructed to give alarm buzzer sound for four different timing intervals that is 5,10,15 and 30 minutes, so we can change the timing of this circuit easily as we want.
