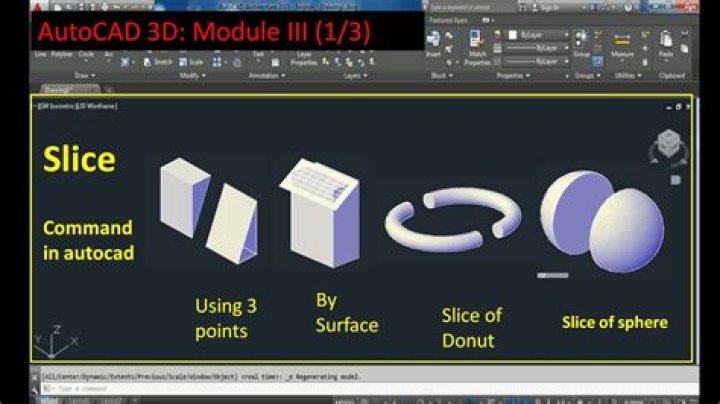

Slice a 3D Solid or Surface With a Cutting Plane

  1. Click Home tab Solid Editing panel Slice. Find.
  2. Select the 3D solid or surface objects to slice. Press Enter.
  3. Specify two points to define the cutting plane.
  4. Specify which side of the sliced object to retain, or enter b (Both) to retain both sides.

How do you split an object in AutoCAD?

To Break an Object

  1. Click Home tab Modify panel Break. Find.
  2. Select the object to break. By default, the point at which you select the object is the first break point.
  3. Specify the second break point. To break an object without creating a gap, enter @0,0 to specify the previous point.

How do you subtract 3D objects in AutoCAD?

3D Subtraction in AutoCAD

  1. Type SUBTRACT and press ENTER.
  2. Select solids, surfaces and regions to subtract from and press ENTER.
  3. Select solids, surfaces and regions to subtract and press ENTER.

How do you separate blocks in AutoCAD?

Select the block that you wish to break up and then select the menu item Edit > Other > Break up block. The block is broken up into its elements and the objects can now be individually edited once more.

What is the BReak command in AutoCAD?

The BReak command in AutoCAD 2014 creates gaps in lines, polylines, circles, arcs, or splines. BReak also comes in handy if you need to split one object in two without actually removing any visible material. AutoCAD prompts you to select a single object that you want to break.

What is the break command in AutoCAD?

How do you edit a 3D object in AutoCAD?

You can use MOVE, ROTATE, and SCALE to modify edges on 3D solids and surfaces just as you can for any other object. Press and hold Ctrl to select the edge. If you move, rotate, or scale an edge on a 3D solid primitive, the history of the solid primitive is removed.

How do you edit 3D solids in AutoCAD?

  1. Choose Modify, Solids Editing, Extrude face NOTE: Must be a solid to extrude the face.
  2. Choose a face to extrude. If you choose more than one face, hold the SHIFT key to deselect unwanted faces.
  3. Press. ENTER. Specify.
  4. height of extrusion or [Path]: .25. Specify. angle of taper for extrusion <0>: 45.

How do you scale a command in AutoCAD?

How to scale down in AutoCAD – Window select the object(s) in AutoCAD, type SCALE, and then specify a number between 0 and 1. Hit Enter. The size of the object(s) will SCALE DOWN by that factor. How to scale up in AutoCAD – Window select the object(s), type SCALE, and then specify a number larger than 1.

Can I split a line in AutoCAD?

Type in BREAK at the command line or select break tool. Select the object you wish to break. Select First Point Option (F) then. Pick the point where you wish divide the object.

How do I resize a 3D object in AutoCAD?

To Scale a 3D Object

  1. Click Home tab Modify 3D Scale. Find.
  2. Select the objects and subobjects you want to scale using the following methods:
  3. When you have selected all objects, press Enter.
  4. Do one of the following:
  5. To resize the selection, drag and release, or enter a scale factor while holding the mouse button.

How to divide a line in AutoCAD?

Divide AutoCAD objects into equal parts Using DIVIDE and MEASURE commands of AutoCAD you can divide 2D drawing objects like Line, Polyline, Arc, Spline and Ellipse in equal parts without knowing their length. These commands will not split the geometry instead at every division a point will be added.

How to split a polygon into two polygons in AutoCAD?

You can split an existing polygon into two new polygons. The existing polygon is deleted. On the command line, enter mpsplit. Select the polygon to split. To split the polygon by drawing a line, enter d. Click in the drawing to specify the first point for the line. Click to specify the next point, or enter a to draw an arc.

How to modify 3D solids and surfaces in SolidWorks?

Modify 3D solids and surfaces by slicing, or dividing, existing objects. Use the SLICE command to slice a 3D solid or surface, you must specify a cutting plane or select a surface. 3D solid objects can be sliced using specified planes and surface objects You can retain one or both halves of the sliced object.

How do you use Places in AutoCAD?

Places point objects at equal intervals along the selected objects. The number of point objects created is one less than the number of segments that you specify. Use PTYPE to set the style and size of all point objects in a drawing. Places specified blocks at equal intervals along the selected object.
