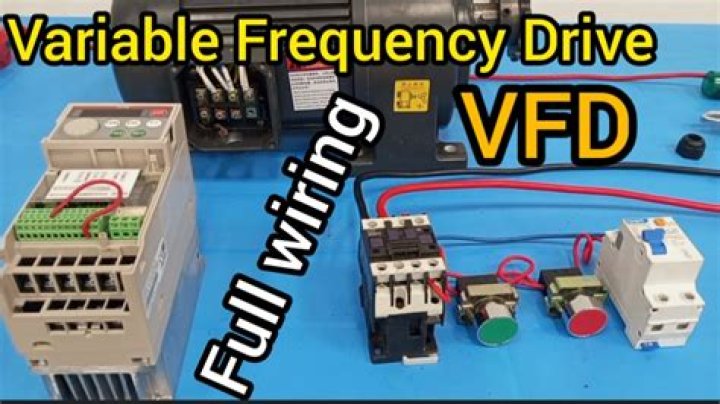

How to Wire a VFD

  1. STEP 1: Make sure everything is correctly sized and accounted for.
  2. STEP 2: Make sure you have a properly-sized circuit breaker rated for your amps and VFD.
  3. STEP 3: Run Wires – (3) power wires and (1) ground wire from your breaker panel to your VFD.
  4. STEP 4: Run wires from VFD to motor.

How does a VFD control voltage?

VFDs rectify a three-phase input to a fixed dc voltage that is filtered and stored using dc bus capacitors. Output frequency increases and output voltage should increase at the same rate, which keeps the motor flux constant. The resulting voltage waveform that is applied to the motor winding is not sinusoidal.

Can you use a VFD on any motor?

Output voltages are available for VFDs to match almost any existing motor voltage. However, very few, if any, VFDs have a direct 13,800-volt output for very high-voltage motors. For these cases, using a step-up transformer on the output of the VFD is often necessary to match the motor voltage.

What is VF ratio in VFD?

V/f’s speed control range is 1:40. Multiplying this ratio by the maximum frequency determines the VFD’s minimum running speed at which it can control the motor. For example, with a 60-Hz maximum frequency and 1:40 speed control range, a drive using V/f control can control a motor down to 1.5 Hz.

How do you make a 3 phase VFD?

For designing the proposed 3 phase VFD or variable frequency drive circuit the following fundamental circuit stages are essentially required:

  1. PWM voltage controller circuit.
  2. 3 phase high side/low side H-bridge driver circuit.
  3. 3 Phase generator circuit.
  4. Voltage to frequency converter circuit for generating V/Hz parameter.

Can I put a VFD on any motor?

Can a VFD step up voltage?

The general rule to remember is that a VFD can convert single phase into three phase power but, it cannot provide a higher voltage out than what you put in. Therefore if you only have a 220V 1phase power supply input, you cannot get three phase 415V output. It will only provide 220V 3 phase output.

What is a variable frequency drive?

Variable Frequency Drives (VFD’s) • Popular speed control devices used in industrial, commercial and residential applications. –Huge energy savings potential operating centrifugal fans, pumps and compressors • Vary frequency of electrical supply to an induction motor to vary the motor speed.

How to control the speed of the motor using PWM?

The pot at pin#5 of IC 2 can be used for controlling the speed and the torque of the motor through PWM method. For V/Hz speed control the Rt/Ct associated with the IRS2453 and R1 associated with IC1 can be respectively tweaked (manually) for getting appropriate results.

Why use a variable torque load (VFD)?

•Energy savings using a VFD to control the speed of a constant torque load is a direct function of speed reduction. Variable Torque Loads • Require much lower torque & horsepower at low speeds than at high speeds. • Power required varies as the cube of the speed. • Examples: – Centrifugal fans, pumps & compressors, mixers and agitators. 10

What is the operating speed of a 4 pole VFD?

VFD Principles of Operation • Motor speed can be varied by changing the frequency, # of poles, or both. • Example: – 4 pole motor @ 60 hertz = 1800 rpm – 4 pole motor @ 50 hertz = 1500 rpm – 4 pole motor @ 40 hertz = 1200 rpm
