At the last light, just connect the incoming black wire to 1 terminal on the light, and then connect the white wire to the other one. This method is called wiring in parallel, so if one light blows, the current can still continue to the other lights to light them up.
Should I wire multiple lights in series or parallel?
Connecting electrical devices and appliances like fan, outlet, light bulbs etc in parallel is a prefer way instead of series wiring. Parallel or series-parallel wiring method is more reliable instead of series wiring.
How are lights arranged in a parallel circuit?
Parallel Circuits The same voltage is applicable to all circuit components connected in parallel. If each bulb is wired to the battery in a separate loop, the bulbs are said to be in parallel.
Can you wire LED lights in parallel?
Wiring LEDs in parallel allows many LEDs to share just one low voltage power supply. We could take those same four 3V LEDs and wire them in parallel to a smaller power supply, say two AA batteries putting out a total of 3V and each of the LEDs would get the 3V they need.
How many LED lights can you daisy chain?
For example, if you choose a 120-volt power supply for daisy-chaining 10-watt LED tube lights, you will be able to connect 12 LEDs. However, to sail on the safer side, make sure that you do not connect more than seven tube lights to a power supply.
Are LED Christmas lights wired in series or parallel?
LEDs are wired in series-parallel just like the traditional bulbs we described above. Unlike incandescent lights, however, LEDs do not typically make use of shunts.
How many LED can be connected in series?
You could run 3 (using a lower value resistor) in series. If the forward voltage of all 3 was 3.5V you’d have a current of 1.5/R, if the forward voltage of all 3 was 3.2V you’d have a current of 2.4/R or about 60% more.
Can you wire lights in series?
So with the exception of rare circumstances, wiring lights in series is not done, and the connection is a parallel circuit. Each fixture is connected to the hot conductor and the neutral conductor so that each fixture has the source voltage present.
What are the disadvantages of wiring in parallel?
Disadvantages of Parallel Connections More size of cable and wire is used in parallel lighting wiring circuit. More current needed when additional light bulb added in the parallel circuit. Battery runs out quicker for DC installation. The parallel wiring design is more complex as compare to series wiring.
How would you wire multiple lights to one plug in?

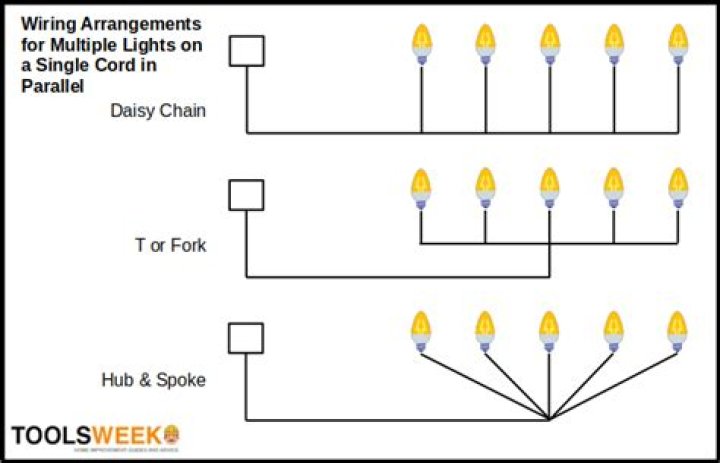

You can do this light switch wiring in one of two ways. The most common is to daisy-chain the light fixtures by connecting them to each other and hooking the first one up to the switch. The other way to wire multiple lights to one switch is to connect all of them directly to the switch in a “home run” configuration.
How to wire up relay for lights?
Identify the wires of Headlights: The first step in order to wire the relay for the driving light is to identify the wires coming out of the driving lights.
What is the difference between wiring in series and parallel?
The main difference between series and parallel circuits is that, in series circuits, all components are connected in series so that they all share the same current whereas, in parallel circuits, components are connected in parallel so that they all have the same potential difference between them.
