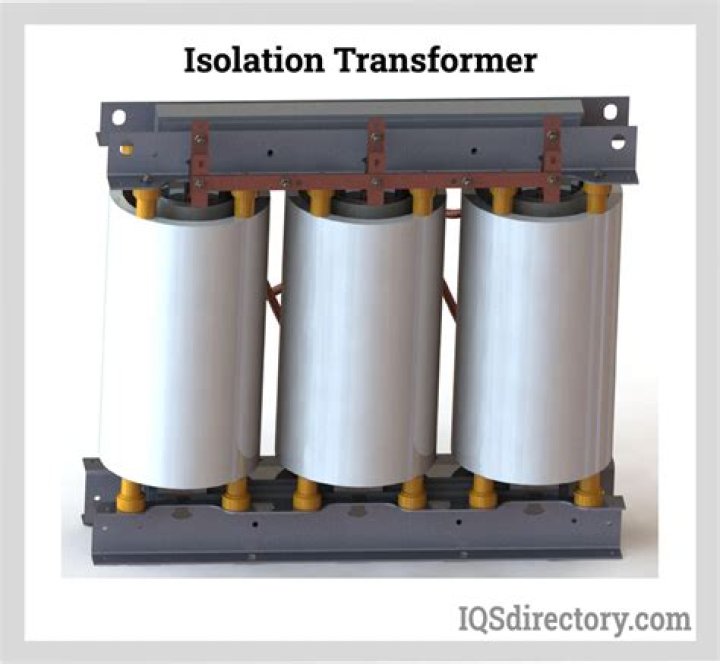

How does a 3 phase isolation transformer work?

Isolation transformers allow an AC signal or power to be taken from one device and fed into another without electrically connecting the two circuits. Isolation transformers block transmission of DC signals from one circuit to the other, but allow AC signals to pass. They also block interference caused by ground loops.

What is a three-phase insulated transformer?

Transformers are used to step-up or step-down voltages between electrical systems. Three-phase transformers are a type of transformers that are used to change voltages of electrical systems with three phases. There are different types of configurations, namely: star-star, delta-delta, star-delta, and delta-star.

What is the working principle of 3 phase transformer?

The basic working principle of a three-phase transformer is the same as a single-phase transformer i.e., on mutual induction. The alternating supply is given to the primary windings and it induces an emf in the secondary winding.

How does isolation transformer work?

Isolation transformers provide galvanic isolation; no conductive path is present between source and load. This isolation is used to protect against electric shock, to suppress electrical noise in sensitive devices, or to transfer power between two circuits which must not be connected.

What is difference between transformer and isolation transformer?

A transformer is used in a power system to increase and decrease the voltage, for the distribution of the electrical current. While an isolation transformer is not used to increase or decrease the voltage they are used to breaking a circuit into a primary and a secondary, so direct current noise can’t get through.

When would you use an isolation transformer?

Isolation transformers are used for power supply of devices that are not at ground potential. Isolation transformers are used in electronics testing and servicing to provide safety, without which touching a live part of the circuit with hazardous voltage can cause severe damage.

What is EMF equation of transformer?

Therefore, RMS value of emf per turn = Form factor X average emf per turn. Therefore, RMS value of emf per turn = 1.11 x 4f Φm = 4.44f Φm. This is called the emf equation of transformer, which shows, emf / number of turns is same for both primary and secondary winding.

What is Delta and star connection?

Star and Delta Connections are the two types of connections in a 3 – phase circuits. A Star Connection is a 4 – wire system and a Delta Connection is a 3 – wire system. Further, the three – phase electric power system can be arranged in two ways. They are: Star (also called Y or Wye) and Delta (Δ).

What is Star and Delta Connection?

What is the advantage of isolation transformer?

Reduces Surges Another advantage of isolation transformers is that they reduce power surges. Electrical equipment can run smoothly without the risk of power surges because the DC signals from a power source are isolated. This means that equipment can function at a high level even if there is a power malfunction.

Is an isolation transformer necessary?

Electrical isolation is necessary to protect circuits, equipment, and people from shocks and short circuits, as well as to make accurate measurements. Isolation transformers are one way to go. Electrical isolation is necessary to protect circuits, equipment, and people from shocks and short circuits.

What is OC test and SC test?

Mainly two tests carried out on the electrical transformer that are open circuit and short circuit test of the transformer also known as SC and OC test. The purpose of these tests is to determine the parameter of the equivalent circuit, voltage regulation and efficiency of the single / three-phase transformer.

Can you run a three phase transformer from single phase?

A “3-phase” transformer is really three single-phase transformers in a common package. You can use any one of the three without connecting the other two. Seattle, WA.

Where does a single phase transformer is used?

A single-phase transformer is frequently used for power distribution and voltage reduction for residential and commercial applications . When used with appliances, the lower voltage output is often rectified into DC current before powering appliances, such as a computer.

What are three phase transformers?

The primary and secondary windings of a transformer can be connected in different configuration as shown to meet practically any requirement. In the case of three phase transformer windings, three forms of connection are possible: “star” (wye), “delta” (mesh) and “interconnected-star” (zig-zag).

What is a KVA transformer?

kVA stands for Kilovolt-Ampere and is the rating normally used to rate a transformer. The size of a transformer is determined by the kVA of the load.
